1
Engine displacement
500
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Brakes pipes - Calipers
Rear wheel
1
2
3
4
5
6
7
8
9
10
1
Rear wheel
56373R00B1
Not Available
1
Rear wheel
59903800B1
Not Available
2
Rear wheel hub
56110R
Not Available
3
screw M8x40
825758
$0,33 Unit Price incl. VAT
4
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
5
WASHER
246976
$1,84 Unit Price incl. VAT
6
Brake disc
597520
Not Available
7
VITE TESTA BOMBATA ESAGONO INCASSATO
597564
$0,50 Unit Price incl. VAT
8
DADO AUTOFRENANTE FLAN
597565
$0,50 Unit Price incl. VAT
9
VALVOLA TUBELESS
597679
$3,03 Unit Price incl. VAT
10
Tyre (Michelin) 150/70-14"
599582
Not Available
10
Tyre (Pirelli) 150/70-14"
599065
Not Available

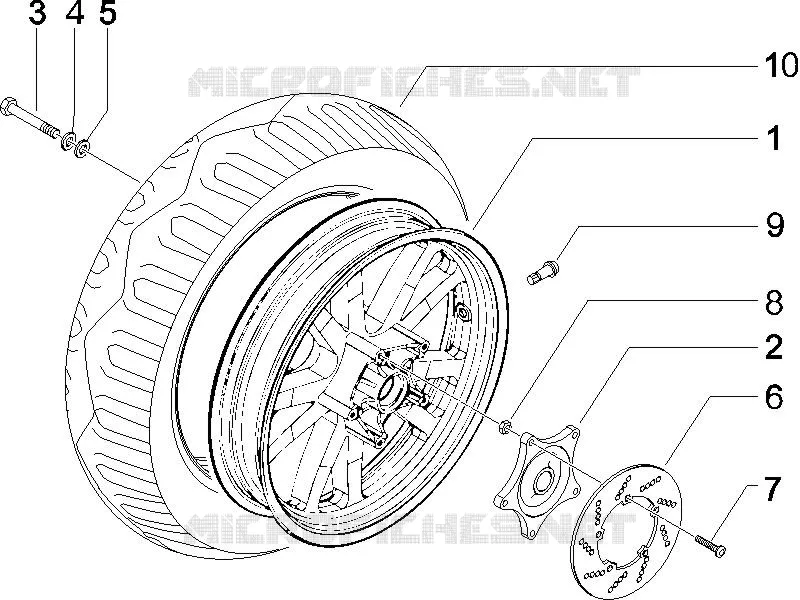

Find the detailed Rear wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
