Fork/steering tube - Steering bearing unit for Vespa Primavera 125 Batik E5+ from 2024

Fork/steering tube - Steering bearing unit

1

Tube de direction avec bras

1C007313

Not Available

2

Piston pin

177451

$3,03 Unit Price incl. VAT

3

Gasket

006731

$0,34 Unit Price incl. VAT

4

Gasket ring

119219

$0,67 Unit Price incl. VAT

5

Roller cage

198513

$5,97 Unit Price incl. VAT

6

Protection de bras de suspension avant

1B011333000K1

$11,28 Unit Price incl. VAT

7

Amortisseur avant

1C004068R

$163,35 Unit Price incl. VAT

8

Pad

174874

$2,36 Unit Price incl. VAT

9

Cylindrical screw with hexagon socket M8x25

1C003712

$0,50 Unit Price incl. VAT

10

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

11

Console de fixation amortisseur

1C004308

$7,99 Unit Price incl. VAT

12

Brake pipe support bracket

1C003390

$7,69 Unit Price incl. VAT

13

Pad

174085

$1,18 Unit Price incl. VAT

14

Washer

174088

$0,84 Unit Price incl. VAT

15

Washer

012535

$0,08 Unit Price incl. VAT

16

Nut

021210

$0,16 Unit Price incl. VAT

17

Front suspension cover

1C001165

$5,38 Unit Price incl. VAT

18

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

19

Nut

969224

$0,42 Unit Price incl. VAT

20

Pin and shock absorber support

1C0023405

$145,71 Unit Price incl. VAT

21

Gasket ring

1C001969

$4,04 Unit Price incl. VAT

22

Cage à rouleau

1C006892

$3,36 Unit Price incl. VAT

23

Ring

177494

$1,85 Unit Price incl. VAT

24

Spring washer

709047

$0,08 Unit Price incl. VAT

25

Vis M8x40

1C006164

$1,26 Unit Price incl. VAT

26

O-ring

177408

$0,08 Unit Price incl. VAT

27

Washer

177445

$0,34 Unit Price incl. VAT

28

Capteur ABS

1D003797

$45,62 Unit Price incl. VAT

29

Hose clamp

667643

$1,18 Unit Price incl. VAT

30

Covex head screw with torx

1C005394

$0,42 Unit Price incl. VAT

31

Flat washer

669282

$1,43 Unit Price incl. VAT

32

Washer

177414

$0,75 Unit Price incl. VAT

33

Circlip

006422

$0,16 Unit Price incl. VAT

34

Gasket ring

177443

$1,77 Unit Price incl. VAT

35

Roller cage

177442

$4,04 Unit Price incl. VAT

36

Roue phonique ABS avant

1C0000955

$23,36 Unit Price incl. VAT

37

Hex socket screw M4x16

959559

$0,25 Unit Price incl. VAT

38

Spring washer

006964

$0,67 Unit Price incl. VAT

39

Brake disc

1C000110

$68,85 Unit Price incl. VAT

40

Screw

5A000656

$0,67 Unit Price incl. VAT

41

Moyeu de roue avant

1C006540

$92,69 Unit Price incl. VAT

42

Bearing

649910

$10,14 Unit Price incl. VAT

43

Snap ring

006635

$0,25 Unit Price incl. VAT

44

Écrou auto-freiné

668001

$1,11 Unit Price incl. VAT

45

Cover

1C000523

$9,49 Unit Price incl. VAT

46

Cover

601026

$0,84 Unit Price incl. VAT

47

Lower steering bearing

6500754

Not Available

48

Upper thrust ring

6506934

Not Available

49

Washer of the steering

0037514

$1,51 Unit Price incl. VAT

50

Steering tube ring nut

0111094

$2,60 Unit Price incl. VAT

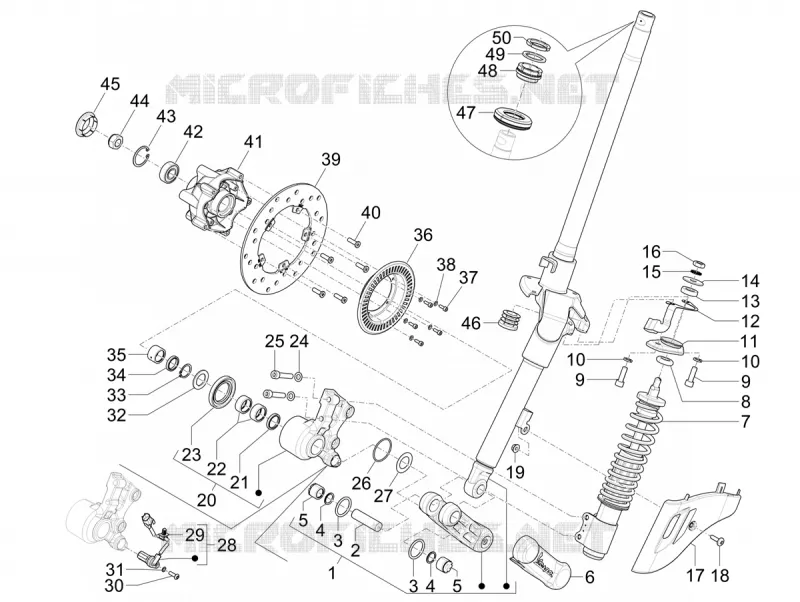

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
