Front glove-box - Knee-guard panel for Vespa Primavera 125 Batik E5+ from 2024

Front glove-box - Knee-guard panel

1

Coffre avant peint

1B010296000VK

Not Available

2

screw

CM179202

$0,25 Unit Price incl. VAT

3

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

4

Spring plate M6

254485

$0,34 Unit Price incl. VAT

5

Clip à pince

1B010490

$0,34 Unit Price incl. VAT

6

Portillon

1B010361

$5,36 Unit Price incl. VAT

7

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

8

Expansion plug

157716

$0,08 Unit Price incl. VAT

9

Cover

299559

$4,82 Unit Price incl. VAT

10

Left pocket

1B010360

$2,69 Unit Price incl. VAT

11

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

12

Lever

577861

$1,35 Unit Price incl. VAT

13

Pin

577400

$5,38 Unit Price incl. VAT

14

Spring

577399

$2,61 Unit Price incl. VAT

15

Key panel

1B0102950000C

$17,88 Unit Price incl. VAT

16

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

17

Cubic top box door

1B012403000Z1

$470,06 Unit Price incl. VAT

18

Door fixing bracket

257614

$1,09 Unit Price incl. VAT

19

Square

252420

$0,59 Unit Price incl. VAT

20

Plate

675490

$5,38 Unit Price incl. VAT

21

Self tapping screw

297498

$0,08 Unit Price incl. VAT

22

Gasket

297275

$5,38 Unit Price incl. VAT

23

Lockup hook door

675478

$5,38 Unit Price incl. VAT

24

Spring

1B003658

$0,76 Unit Price incl. VAT

25

Lever assembly

675489

$8,16 Unit Price incl. VAT

26

Special screw

299972

$0,50 Unit Price incl. VAT

27

Self locking nut

577620

$0,08 Unit Price incl. VAT

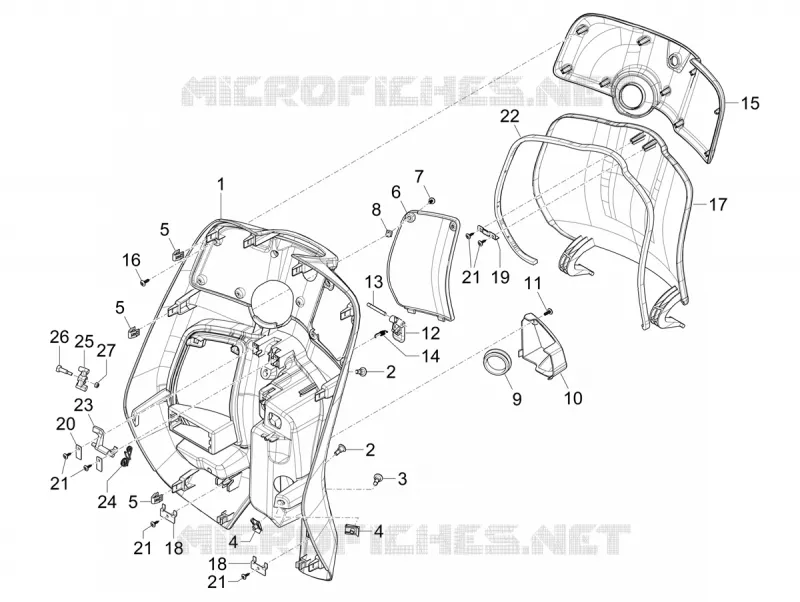

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
