by

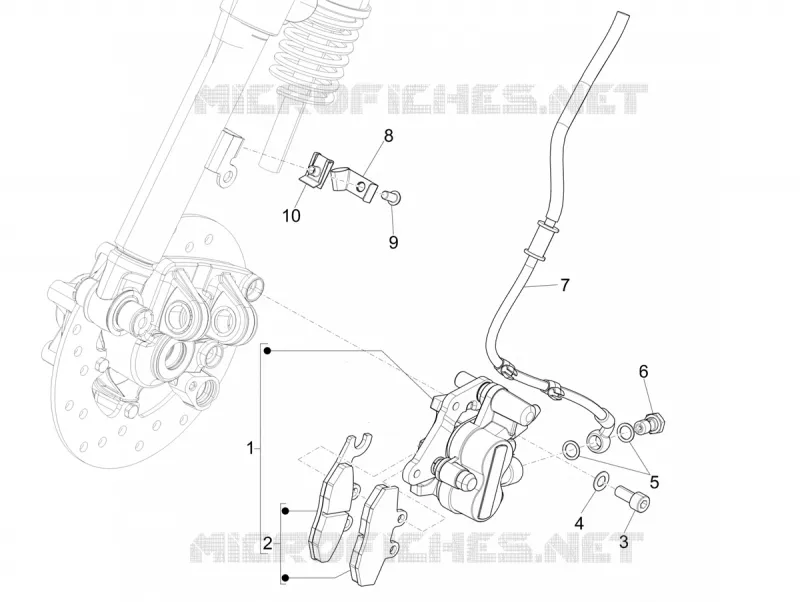

Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
1
Pince frein (Heng Tong)
CM065714
$154,22 Unit Price incl. VAT
2
(Heng Tong) Brake pads couple
651356
$29,03 Unit Price incl. VAT
3
Cylindrical screw with hexagon socket M8x25
1C003712
$0,50 Unit Price incl. VAT
4
Spring washer
709047
$0,08 Unit Price incl. VAT
5
Gasket
127927
$0,25 Unit Price incl. VAT
6
Vis spéciale
1C001209
Not Available
7
Tuyau de frein hydraulique avant
1C007075
$69,91 Unit Price incl. VAT
8
Collier
1C004561
$3,65 Unit Price incl. VAT
9
Hex socket screw M6x12
274369
$0,17 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
