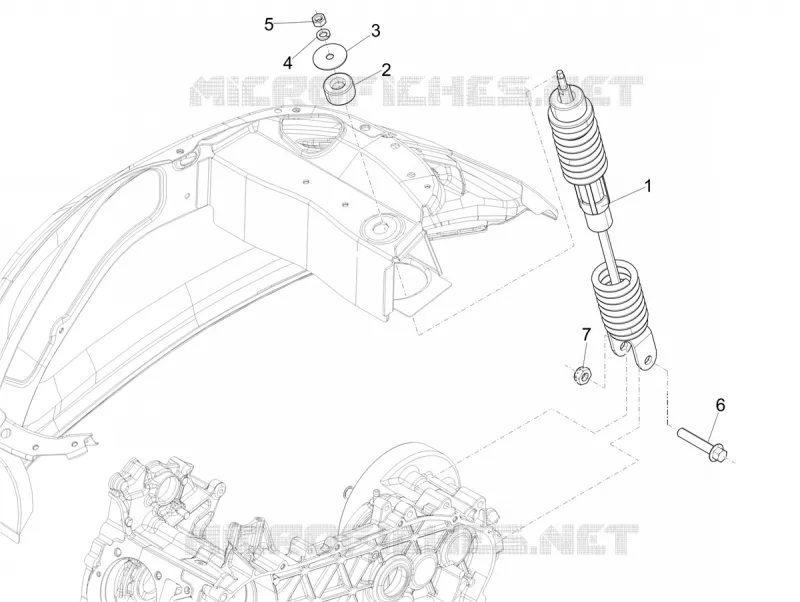

Rear suspension - Shock absorber/s
1
2
3
3
4
5
6
7
1
Amortisseur arrière complet
1C007215
$100,45 Unit Price incl. VAT
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Flat washer
267038
$0,67 Unit Price incl. VAT
4
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
7
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
