Brakes pipes - Calipers (ABS) FOR Vespa GTS 310 E5+ Classic - Super - Super Sport FROM 2024

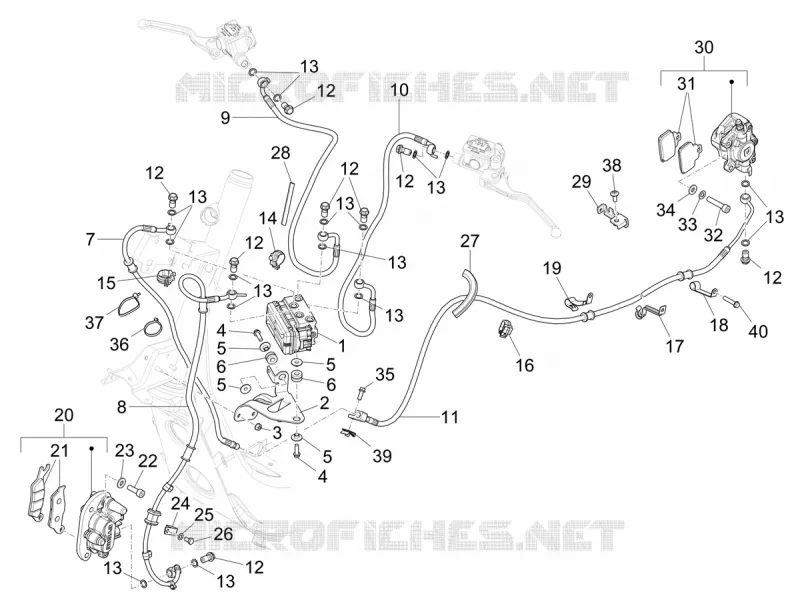

Brakes pipes - Calipers (ABS)

1

Centrale ABS

1C006399

$620,70 Unit Price incl. VAT

2

Staffa fissaggio centralina ABS

1C006400

$11,35 Unit Price incl. VAT

3

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

4

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

5

Spacer

1C000253

$0,34 Unit Price incl. VAT

6

Pad

939278

$0,34 Unit Price incl. VAT

7

Durit de frein arrière - jonction - unité ABS

1C006497

$40,78 Unit Price incl. VAT

8

Tuyau de frein unité ABS-étrier de frein avant

1C006496

Not Available

9

ABS unit left brake pump pipe

1C006495

$42,54 Unit Price incl. VAT

10

Tuyau maître-cylindre de frein D-unité ABS

1C006494

$44,39 Unit Price incl. VAT

11

Tuyaux frein arrière

1C007739

$77,91 Unit Price incl. VAT

12

Special screw

1C002059R

$2,02 Unit Price incl. VAT

13

Gasket

127927

$0,25 Unit Price incl. VAT

14

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

15

Non return spring

CM006912

$0,42 Unit Price incl. VAT

16

Pipes/cables retainer spring

CM013202

$1,10 Unit Price incl. VAT

17

Hose clamp

1C001520

$1,09 Unit Price incl. VAT

18

Hose clamp

564761

$0,38 Unit Price incl. VAT

19

Hose clamp

1C002845

$6,60 Unit Price incl. VAT

20

Pince frein avant

CM256505

$101,89 Unit Price incl. VAT

21

Brake pads couple

1C000760

$33,08 Unit Price incl. VAT

22

Cylindrical screw with hexagon socket M8x25

1C003712

$0,50 Unit Price incl. VAT

23

Rondelle plate

1C006600

$0,34 Unit Price incl. VAT

24

Collier

1C007193

$1,00 Unit Price incl. VAT

25

Screw m6x12

031086

$0,08 Unit Price incl. VAT

26

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

27

Edge protection L=100

CM023903

$0,78 Unit Price incl. VAT

28

Guard

CM082201

Not Available

29

Bracket with up

649635

$6,30 Unit Price incl. VAT

30

Rear brake hydraulic pin

CM326101

Not Available

31

Paire de plaquettes de frein

1C006573

$24,31 Unit Price incl. VAT

32

Vis M8x40

1C006164

$1,26 Unit Price incl. VAT

33

Spring washer

709047

$0,08 Unit Price incl. VAT

34

Flat washer 8,2x17x2,5

828961

$0,28 Unit Price incl. VAT

35

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

36

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

37

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

38

Screw M6x16

272836

$3,70 Unit Price incl. VAT

39

Spring plate M6

254485

$0,34 Unit Price incl. VAT

40

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
