FLYWHEEL COVER - OIL FILTER for GILERA PIAGGIO VESPA Liberty 125 i-get 4T 3V E5+ from 2024

Cdi magneto assy

REAR BRAKE - SHOES

FLYWHEEL COVER - OIL FILTER

1

COPERCHIO VOLANO CON P.I. x ric.

8798545

$158,88 Unit Price incl. VAT

2

ANELLO DI TENUTA 14x28x7

1A005835

$10,26 Unit Price incl. VAT

3

GUARNIZIONE COPERCHIO VOLANO

877671

$4,12 Unit Price incl. VAT

4

VITE ESAGONALE FLANGIATA M6x30

B016792

$0,25 Unit Price incl. VAT

5

VITE TEF M6x50

1A000349

$0,42 Unit Price incl. VAT

6

VITE M6x35

1A000348

$2,25 Unit Price incl. VAT

7

VITE FLANGIATA A TESTA ESAGONALE

B016776

$0,67 Unit Price incl. VAT

8

ASTA LIVELLO OLIO COMPLETA

1A000619

$2,19 Unit Price incl. VAT

9

GUARNIZIONE "O.R."

1A009397

$0,25 Unit Price incl. VAT

10

SENSORE MINIMA PRESSIONE OLIO

1A024308R

$8,91 Unit Price incl. VAT

11

RONDELLA

1A011500

$0,59 Unit Price incl. VAT

12

TAPPO FILTRO OLIO

826165

$5,88 Unit Price incl. VAT

13

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

14

FILTRO OLIO ASPIRAZIONE COMPLETO

B015454

$2,52 Unit Price incl. VAT

15

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

16

FILTRO OLIO COMPLETO

1A022356

$7,03 Unit Price incl. VAT

17

VITE SPECIALE FILTRO OLIO

B015455

$3,87 Unit Price incl. VAT

18

VENTOLA CON INSERTO

1A001379

$14,04 Unit Price incl. VAT

19

RONDELLA PIANA

B015807

$0,84 Unit Price incl. VAT

20

DADO FLANGIATO M8X1.25

874557

$0,51 Unit Price incl. VAT

21

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

22

CONVOGLIATORE LATO VOLANO COMPLETO

1A025634

$45,23 Unit Price incl. VAT

23

BOCCOLA FLANGIATA ZIGRINATA

B015908

$1,18 Unit Price incl. VAT

24

VITE TESTA CIL. IMPR. ESA.

1A001680

$0,25 Unit Price incl. VAT

25

ROSETTA ELAST. "CONTACT"

828583

$0,08 Unit Price incl. VAT

26

VITE AUTOFILETTANTE

1A001106

$0,08 Unit Price incl. VAT

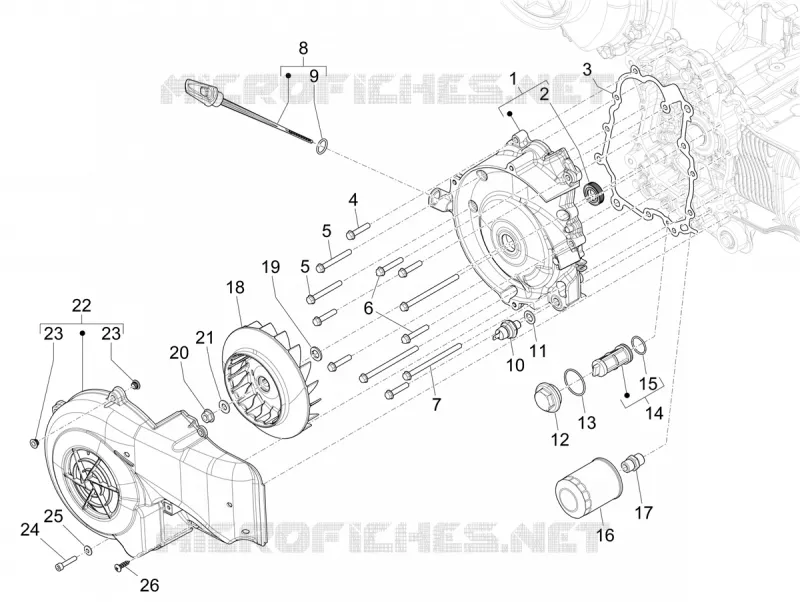

Find the detailed FLYWHEEL COVER - OIL FILTER GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
