Oil pump FOR Beverly 400 E5+ Classic - Sport FROM 2025

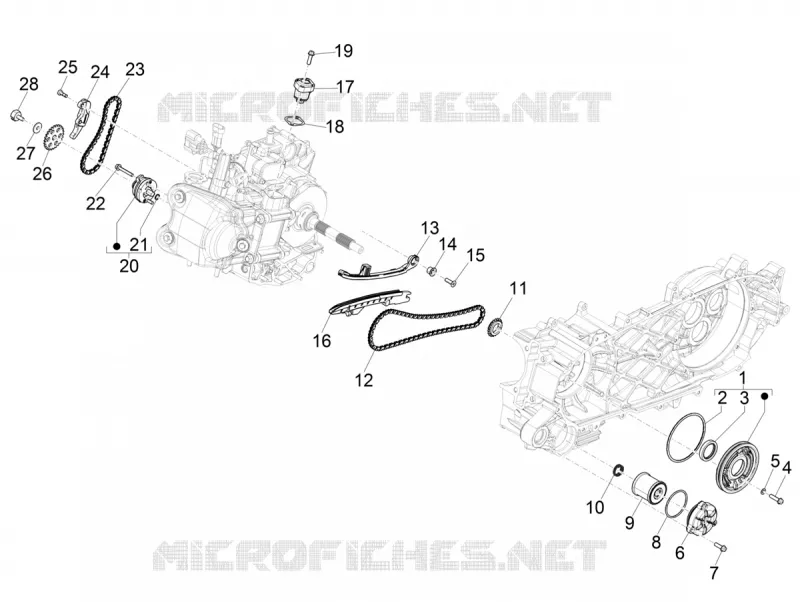

Oil pump

1

Timing system cover cpl.

B0161755

$52,12 Unit Price incl. VAT

2

Gasket

B016176

$4,82 Unit Price incl. VAT

3

Gasket ring 30x40x7

B014441

$22,46 Unit Price incl. VAT

4

Screw w/ flange M6x25

B016774

$0,34 Unit Price incl. VAT

5

Plain washer

879027

$0,50 Unit Price incl. VAT

6

Oil filter cover

B018033

$27,67 Unit Price incl. VAT

7

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

8

O-Ring

B018141

$2,97 Unit Price incl. VAT

9

Oil filter

880887

$9,99 Unit Price incl. VAT

10

Spring

AP9150167

$4,71 Unit Price incl. VAT

11

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

12

Chaîne de distribution

1A019759

$35,20 Unit Price incl. VAT

13

Tge tendeur de chaîne

1A018553

$16,42 Unit Price incl. VAT

14

Spacer

825737

$1,10 Unit Price incl. VAT

15

Screw

874037

$0,42 Unit Price incl. VAT

16

Patin fixe

1A016233

$8,70 Unit Price incl. VAT

17

Tendeur de chaîne complet

1A018752

$21,58 Unit Price incl. VAT

18

Joint tendeur chaîne

1A018560

$1,90 Unit Price incl. VAT

19

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

20

Oil pump assembly

83085R

$19,84 Unit Price incl. VAT

21

Snap ring

871301

$0,50 Unit Price incl. VAT

22

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

23

Oil pump chain

831333

$9,32 Unit Price incl. VAT

24

Patin tendeur de chaîne

1A015826

$10,30 Unit Price incl. VAT

25

Torx Screw

B017296

$0,50 Unit Price incl. VAT

26

Oil pump gear

B013970

$5,53 Unit Price incl. VAT

27

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

28

Special screw

878753

$15,47 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
