Fork/steering tube - Steering bearing unit FOR Beverly 310 E5+ Classic - Sport FROM 2025

Cylinder-piston-wrist pin unit

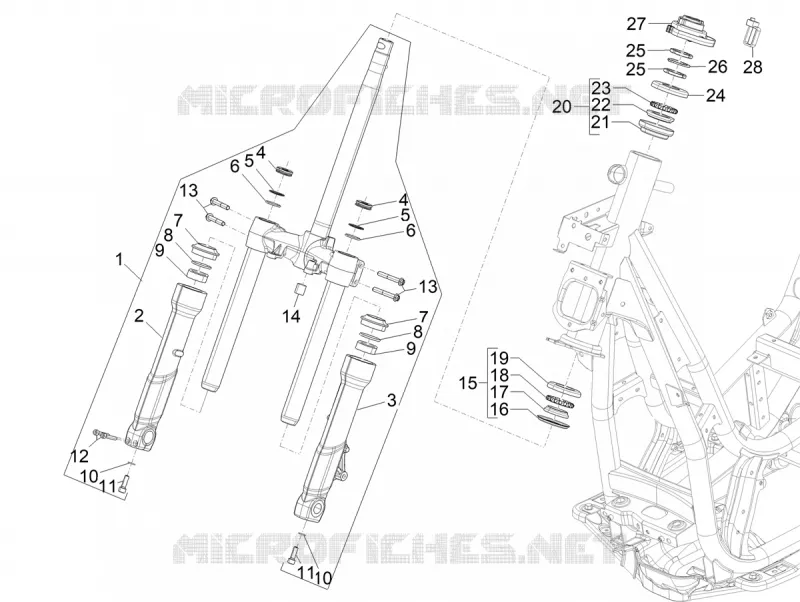

Fork/steering tube - Steering bearing unit

1

Fourche avant complète

1C004872

$844,99 Unit Price incl. VAT

2

Chemise D. cpl.

1C005911

$230,50 Unit Price incl. VAT

3

Chemise G. cpl.

1C005910

$238,93 Unit Price incl. VAT

4

Bouchon

1C005914

$6,84 Unit Price incl. VAT

5

Anneau élastique

1C005920

$1,08 Unit Price incl. VAT

6

Joint torique d'étanchéité

1C005919

$1,52 Unit Price incl. VAT

7

Pare-poussière

1C005917

$8,17 Unit Price incl. VAT

8

Bague de butée

1C005913

$1,66 Unit Price incl. VAT

9

Bague d'étanchéité

1C005918

$15,19 Unit Price incl. VAT

10

Rondelle

1C005915

$1,23 Unit Price incl. VAT

11

Cylindrical screw with hexagon socket

1C005921

$1,66 Unit Price incl. VAT

12

Cylindrical screw with hexagon socket

1C005912

$1,74 Unit Price incl. VAT

13

Vis hexagonale

1C005916

$2,17 Unit Price incl. VAT

14

Cover

601026

$0,84 Unit Price incl. VAT

15

Lower steering bearing

6500754

Not Available

16

Rondelle

564262

$1,01 Unit Price incl. VAT

17

Siege int.

665602

$8,65 Unit Price incl. VAT

18

Ball cage

564260

Not Available

19

Logement inférieur

564259

$12,05 Unit Price incl. VAT

20

Upper thrust ring

600750

Not Available

21

Siège ext.

667391

$11,43 Unit Price incl. VAT

22

Siege int.

667390

$7,48 Unit Price incl. VAT

23

Ball cage

564260

Not Available

24

Cup

600753

$0,92 Unit Price incl. VAT

25

Steering tube ring nut

0111094

$2,60 Unit Price incl. VAT

26

Steering security plate

582787

$3,65 Unit Price incl. VAT

27

Protection collar

1C005772

$5,72 Unit Price incl. VAT

28

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
