1
Engine displacement
300
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 300 E5 Deep Black
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
SWITCHES

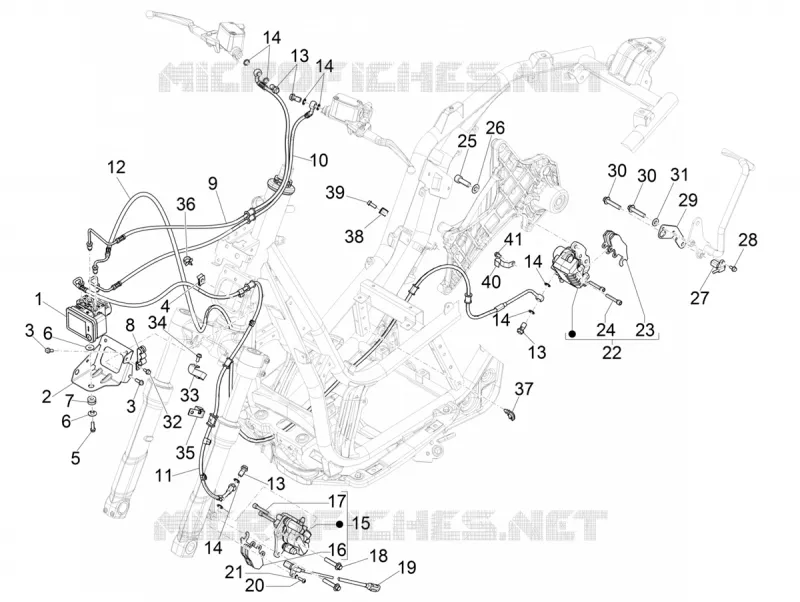

Brakes pipes - Calipers (ABS)
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
13
13
14
14
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
1
ABS electro-hydraulic control unit
1C002747
$1 736,10 Unit Price incl. VAT
2
Bride de support ABS
1C005778
$12,96 Unit Price incl. VAT
3
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
6
Spacer
1C000870
$0,92 Unit Price incl. VAT
7
Pad
939278
$0,34 Unit Price incl. VAT
8
Hose clamp
1C002899
$5,94 Unit Price incl. VAT
9
Tuyau maître-cylindre de frein D-unité ABS
1C004923
$45,73 Unit Price incl. VAT
10
Tuyau maître-cylindre de frein G-unité ABS
1C004924
$47,55 Unit Price incl. VAT
11
Tuyau de frein unité ABS-étrier de frein avant
1C004925
$75,46 Unit Price incl. VAT
12
Tuyau flexible étrier de frein arrière-unité ABS
1C004926
$72,48 Unit Price incl. VAT
13
Special screw
1C002059R
$2,02 Unit Price incl. VAT
14
Gasket
127927
$0,25 Unit Price incl. VAT
15
Étrier de frein G (Heng Tong)
CM294401
$95,56 Unit Price incl. VAT
16
(Heng Tong) Brake pads couple
651253
$47,93 Unit Price incl. VAT
17
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
18
Vis hexagonale M8x40
1C003715
$0,73 Unit Price incl. VAT
19
Capteur ABS complet
1D003868
$51,77 Unit Price incl. VAT
20
Covex head screw with torx
1C005394
$0,42 Unit Price incl. VAT
21
Flat washer
669282
$1,43 Unit Price incl. VAT
22
Étrier de frein D (Heng Tong)
CM294402
$89,19 Unit Price incl. VAT
23
(Heng Tong) Brake pads couple
665842
$43,20 Unit Price incl. VAT
24
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
25
Vis cylindrique six pans gros pas
1C005334
$0,86 Unit Price incl. VAT
26
Washer
012535
$0,08 Unit Price incl. VAT
27
Capteur ABS complet
1D003876
$41,45 Unit Price incl. VAT
28
Vis à bride à tête hexagonale
1C003713
$0,22 Unit Price incl. VAT
29
Bride de support de capteur ABS
1C005564
$21,68 Unit Price incl. VAT
30
Vis hexagonale M8x40
1C003715
$0,73 Unit Price incl. VAT
31
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
32
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
33
Collier
1C005088
$3,28 Unit Price incl. VAT
34
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
35
Collier
1C005568
$3,28 Unit Price incl. VAT
36
Elastic spring
231590
$0,25 Unit Price incl. VAT
37
Hose clamp
298729
$0,34 Unit Price incl. VAT
38
Hose clamp
573918
$1,09 Unit Price incl. VAT
39
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
40
Hose clamp
564629
$2,50 Unit Price incl. VAT
41
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
