CYLINDER HEAD - VALVES for MP3 310 hpe - 310 hpe Sport E5+ from 2024

Cylinder-piston-wrist pin unit

Rocking levers support unit

CYLINDER HEAD - VALVES

1

Culasse cylindre complète

1A027427

$565,71 Unit Price incl. VAT

2

Soupape d'échappement ø=22,2 mm

1A027428

$39,54 Unit Price incl. VAT

3

Soupape d'admission ø 25 mm

1A009730

$32,28 Unit Price incl. VAT

4

Lower cap

483711

$1,35 Unit Price incl. VAT

5

Ressort

1A009718

$7,02 Unit Price incl. VAT

6

Valve gasket ring

436438

$1,34 Unit Price incl. VAT

7

Upper cap

483914

$0,91 Unit Price incl. VAT

8

Valve half-cone

285846

$2,94 Unit Price incl. VAT

9

Stud bolt M7

435629

$0,67 Unit Price incl. VAT

10

Exhaust pipe gasket

480853

$4,89 Unit Price incl. VAT

11

Plug M6x10

842360

$0,75 Unit Price incl. VAT

12

Vis de purge

1A013452

$1,81 Unit Price incl. VAT

13

Ecrou M8 x 1.25

1A010537

$3,65 Unit Price incl. VAT

14

Vis bride

872424

$3,70 Unit Price incl. VAT

15

Joint tête 0,3 mm

1A014002

$22,96 Unit Price incl. VAT

16

Bulbe de température d’eau

1A023021R

$47,85 Unit Price incl. VAT

17

Thermostat

82831R

Not Available

18

Raccord sortie eau

1A011220

$38,43 Unit Price incl. VAT

19

Vis de purge

1A013452

$1,81 Unit Price incl. VAT

20

Torx Screw M5x20

B016808

$0,20 Unit Price incl. VAT

21

HT coil

641901

$52,29 Unit Price incl. VAT

22

Screw w/ flange M6x25

B016774

$0,34 Unit Price incl. VAT

23

Bride de support de bobine H.T. avec pièces internes

1A024761

$9,70 Unit Price incl. VAT

24

Vis bride

878872

$0,34 Unit Price incl. VAT

25

Spring

191002

$4,89 Unit Price incl. VAT

26

Câble H.T. de capuchon de bougie

CM339901

$46,72 Unit Price incl. VAT

27

Insulating cap

641040

$4,45 Unit Price incl. VAT

28

Borne H.T.

1A024520

$1,42 Unit Price incl. VAT

29

H.V. cable

080341

$5,89 Unit Price incl. VAT

30

Passe-câble

1A010795

Not Available

31

Gaine câblage HT

CM079401

$4,32 Unit Price incl. VAT

32

Bougie d'allumage NGK MR7BI-8

1A013926

$87,59 Unit Price incl. VAT

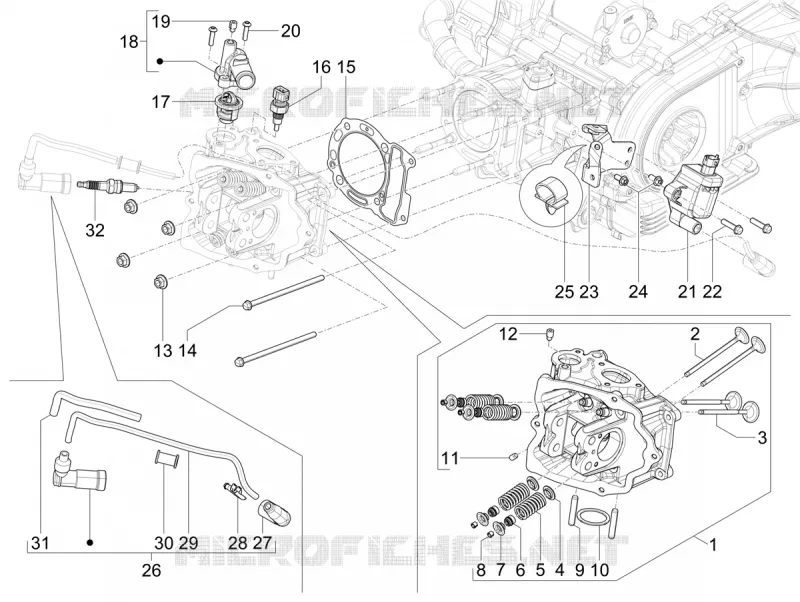

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
