Crankcase for GILERA PIAGGIO VESPA Sprint 50 4T 3V Euro 5 from 2020

Crankcase

1

CARTER COMPLETO

1A017701

Not Available

2

PRIGIONIERO FISS.TESTA-CILINDRO

842161

$3,70 Unit Price incl. VAT

3

SPINA RIFERIMENTO (D.9,5 H=15)

B015956

$0,75 Unit Price incl. VAT

4

ANELLO ELASTICO

480953

$3,70 Unit Price incl. VAT

5

CUSCINETTO

435363

$6,44 Unit Price incl. VAT

6

ANELLO DI TENUTA k2

480066

$5,99 Unit Price incl. VAT

7

SILENTBLOC ATTACCO AMMORTIZZATORE

666991

$4,49 Unit Price incl. VAT

8

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

9

GRANO DI RIFERIMENTO

B015957

$0,59 Unit Price incl. VAT

10

CUSCINETTO RADIALE

82671R

$12,19 Unit Price incl. VAT

11

ANELLO TENUTA 17.28.07

969028

$5,99 Unit Price incl. VAT

12

BUSSOLA (GRUPPO RINVIO)

431860

$3,70 Unit Price incl. VAT

13

ALBERO PULEGGIA CONDOT

8282335

$101,37 Unit Price incl. VAT

14

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

15

VITE ESAGONALE CON FLANGIA

478895

$0,50 Unit Price incl. VAT

16

PARATIA OLIO

969625

$1,43 Unit Price incl. VAT

17

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

18

RONDELLA IN LEGA k3

485703

$0,16 Unit Price incl. VAT

19

VITE TCEI (M8x12)

269755

$0,34 Unit Price incl. VAT

20

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

21

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

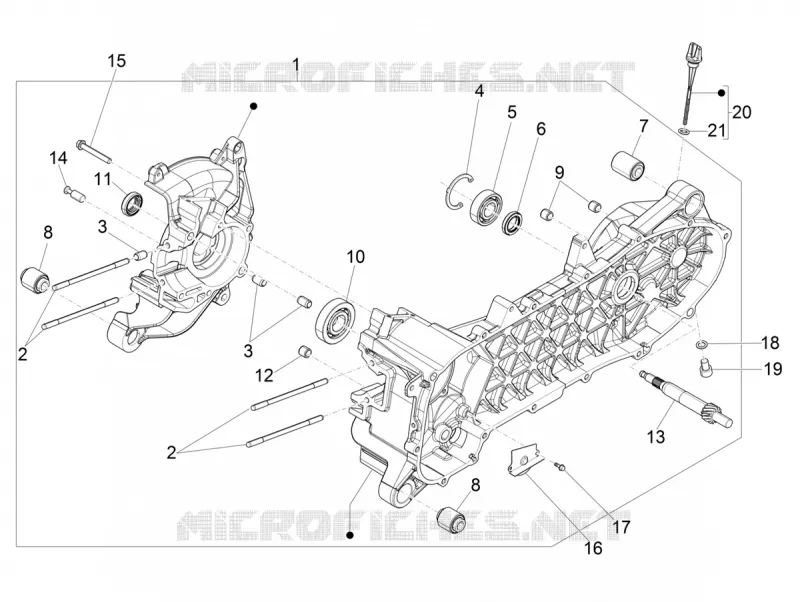

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
