MAIN WIRING HARNESS for GILERA PIAGGIO VESPA Sprint 50 25 km/h Euro 5 from 2020

MAIN WIRING HARNESS

1

GRUPPO CAVETTI

1D003279

Not Available

2

Porte-fusibles

1D000558

Not Available

3

Couvercle

1D000559

Not Available

4

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

5

FUSIBILE **

293256

$0,42 Unit Price incl. VAT

6

FUSIBILE LAMELLARE 15A

290860

$5,73 Unit Price incl. VAT

7

COPERCHIETTO

290404

$0,42 Unit Price incl. VAT

8

FASCETTA PER BORDO LAMIERA

1D001827

$1,66 Unit Price incl. VAT

9

FASCETTA

1D001143

$0,34 Unit Price incl. VAT

10

SCATOLA PORTAIMPIANTO CON INSERTI

1B008147

$10,73 Unit Price incl. VAT

11

COPERCHIO SCATOLA PORTAIMPIANTO

1B008445

$6,74 Unit Price incl. VAT

12

FASCETTA

667643

$1,18 Unit Price incl. VAT

13

VITE AUTOFILET. CON IMPRONTA TORX

CM180701

$0,16 Unit Price incl. VAT

14

CONNETTORE COMPLETO

1D000167

$8,19 Unit Price incl. VAT

15

SUPPORTO CONNETTORE

1D001098

$4,00 Unit Price incl. VAT

16

MOLLETTA RITEGNO TUBI/CAVI

CM006908

$0,50 Unit Price incl. VAT

17

MOLLETTA FISS.TUBI CARBURANTE

CM006910

$0,25 Unit Price incl. VAT

18

FASCETTA

1D000071

$2,95 Unit Price incl. VAT

19

VITE ESAGONALE FLANGIATA M6X16 CL10,9

B016777

$0,16 Unit Price incl. VAT

20

MANCETTA

1D001828

$3,65 Unit Price incl. VAT

21

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

22

MOLLETTA PER CONNETTORE

639560

$0,67 Unit Price incl. VAT

23

PRESA USB

1D003323

$29,70 Unit Price incl. VAT

24

PASSACAVO PER PRESA USB

1B001591

$1,56 Unit Price incl. VAT

25

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

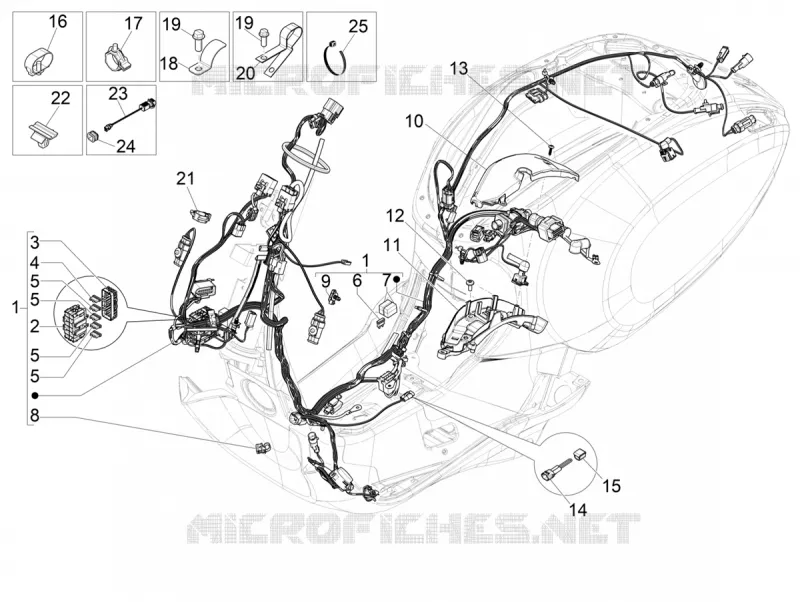

Find the detailed MAIN WIRING HARNESS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
