Oil pump-oil pan for GILERA PIAGGIO VESPA Liberty Leader RST PTT (F)

Oil pump-oil pan

1

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

2

ASTA TENDICATENA

840510

$2,15 Unit Price incl. VAT

3

PATTINO FISSO

828308

$1,34 Unit Price incl. VAT

4

Screw w/ flange M6x25

414837

Not Available

5

Oil pump assembly

844352

Not Available

6

Screw w/ flange M6x25

414837

Not Available

7

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

433477

$0,19 Unit Price incl. VAT

8

MOLLA A TAZZA

436695

$0,59 Unit Price incl. VAT

9

Screw w/ flange M6x14

833722

Not Available

10

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

11

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

12

COPPA OLIO MOTORE

843761

$13,95 Unit Price incl. VAT

13

Retainer clamp

487824

$0,33 Unit Price incl. VAT

14

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

15

CATENA POMPA OLIO (50 PS)

82649R

$13,37 Unit Price incl. VAT

16

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

17

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

18

CATENA DISTRIB.SILENZIOSA

82643R

$44,55 Unit Price incl. VAT

19

PIGNONE DISTRIBUZIONE

82782R

$7,06 Unit Price incl. VAT

20

RONDELLA PARAOLIO

483918

$0,53 Unit Price incl. VAT

21

ANELLO DI TENUTA (O-R)

825620

$8,21 Unit Price incl. VAT

22

ANELLO DI TENUTA k7

82538R

$8,01 Unit Price incl. VAT

23

TAMPONE CATENA POMPA OLIO.

434345

$2,77 Unit Price incl. VAT

24

Cover

828875

$11,51 Unit Price incl. VAT

25

VITE TCIC M5X12

015585

$0,08 Unit Price incl. VAT

26

Oil filler plug

846819

Not Available

26

TAPPO OLIO COMPLETO

843364

$1,39 Unit Price incl. VAT

27

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

28

O-ring

479986

Not Available

29

Plain washer

487937

$0,09 Unit Price incl. VAT

30

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

31

GUARNIZIONE CARTER/COPPA OLIO

830128

$2,77 Unit Price incl. VAT

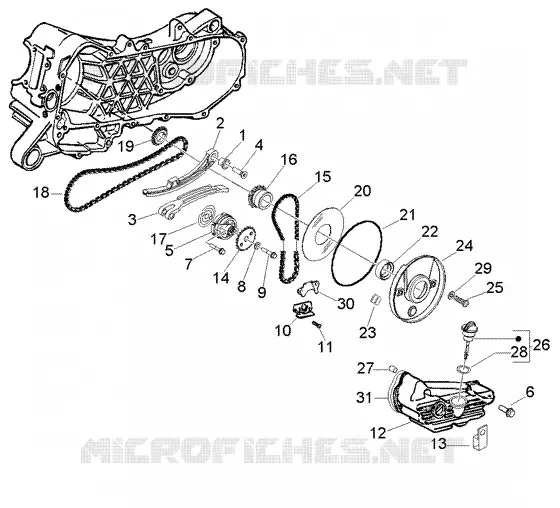

Find the detailed Oil pump-oil pan GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
