1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2022
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Brakes pipes - Calipers (ABS)

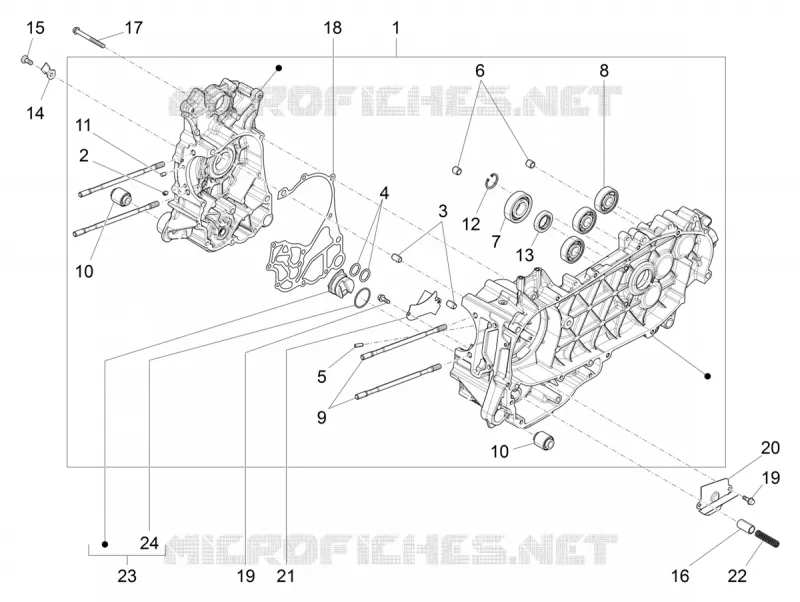

Crankcase
1
1
1
1
2
3
3
4
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
1
Carter complet 1e cat.
CM31720301
Not Available
1
Carter complet 2e cat.
CM31720302
Not Available
2
Nozzle
B018059
$0,59 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
4
O-ring
273754
$0,16 Unit Price incl. VAT
5
Calibrated nozzle
880706
$2,61 Unit Price incl. VAT
6
Locating dowel
B015957
$0,59 Unit Price incl. VAT
7
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
8
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
9
Stud bolt
1A001406
$3,61 Unit Price incl. VAT
10
Silent-block
486081
$6,73 Unit Price incl. VAT
11
Locating dowel
484993
$0,16 Unit Price incl. VAT
12
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
13
Sealing ring 22x35x7
1A005834
$11,18 Unit Price incl. VAT
14
Ring container lamination
876646
$0,76 Unit Price incl. VAT
15
Hex socket screw M6x14
1A003108
$0,42 Unit Price incl. VAT
16
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
17
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
18
Gasket
875111
$3,34 Unit Price incl. VAT
19
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
20
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
22
Valve spring
B015431
$0,50 Unit Price incl. VAT
23
Filter door insert
B015430
$3,87 Unit Price incl. VAT
24
Gasket
431065
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
