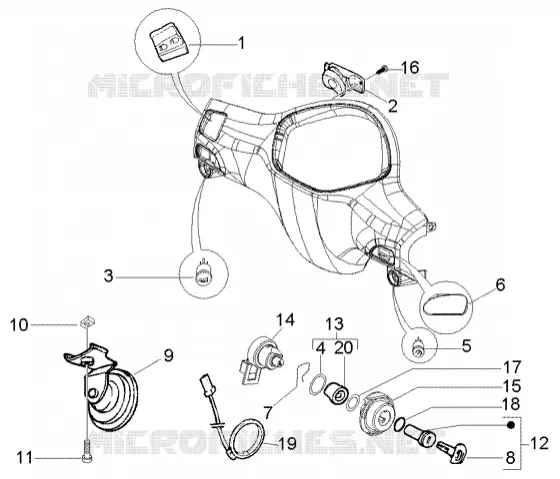

Electrical device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Headlight selector
294341
Not Available
2
Turn signal lamps switch
58056R
Not Available
3
Horn button
58058R
$7,08 Unit Price incl. VAT
4
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
5
Start pushbutton
58057R
$7,08 Unit Price incl. VAT
6
Cover
584427
Not Available
7
Spring
253937
$0,25 Unit Price incl. VAT
8
Hewn key with transponder
575810
$55,57 Unit Price incl. VAT
9
Horn
CM071803
$35,10 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
12
Cylinder set
576825
$137,64 Unit Price incl. VAT
13
Complete lock block
298903
Not Available
14
Key switch
580621
Not Available
15
Lock body
298581
Not Available
16
Self tapping screw 3,5x13
258403
$2,95 Unit Price incl. VAT
17
Flat washer
298594
$1,01 Unit Price incl. VAT
18
Gasket ring
298731
$0,25 Unit Price incl. VAT
19
Immobilizer antenna
828800
Not Available
20
Block
298592
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
