1
Engine displacement
300
2
Model
GTS
3
Year
2022
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
REAR WHEEL
by
Wheel huosing - Mudguard

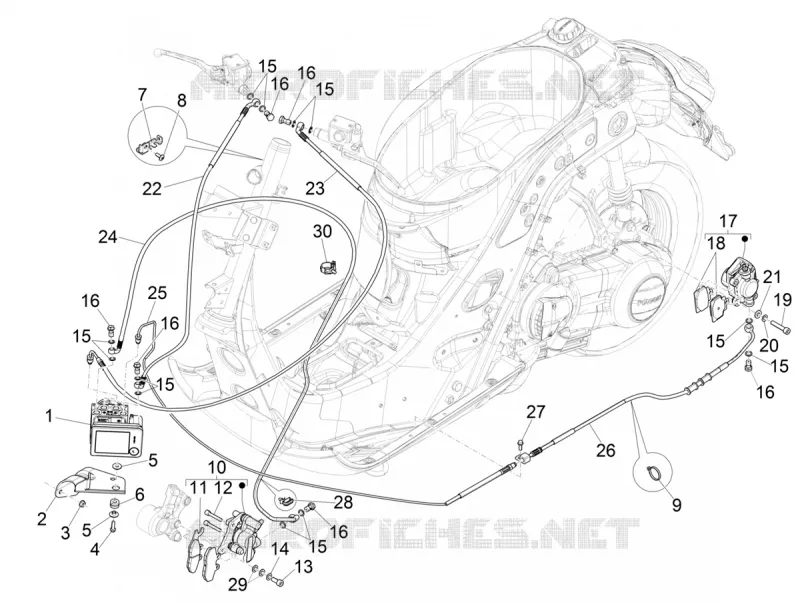

Brakes pipes - Calipers (ABS)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
15
16
16
16
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
ABS electro-hydraulic control unit
1C002747
$1 736,10 Unit Price incl. VAT
2
Fixture rod
1C002710
$17,07 Unit Price incl. VAT
3
Nut
969224
$0,42 Unit Price incl. VAT
4
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
5
Spacer
1C000870
$0,92 Unit Price incl. VAT
6
Pad
939278
$0,34 Unit Price incl. VAT
7
Bracket with up
649635
$6,30 Unit Price incl. VAT
8
Screw M6x16
272836
$3,70 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
10
Pince frein avant
CM294407
$150,62 Unit Price incl. VAT
11
Brake pads couple
668021
$105,58 Unit Price incl. VAT
12
Brake supp. plate pin
666139
$7,56 Unit Price incl. VAT
13
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
Gasket
127927
$0,25 Unit Price incl. VAT
16
Special screw
1C002059R
$2,02 Unit Price incl. VAT
17
Étrier de frein hydraulique
CM294804
$121,08 Unit Price incl. VAT
17
Etrier de frein Heng Tong
CM294803
$98,37 Unit Price incl. VAT
18
Rear Brake pads couple.
647161
$36,45 Unit Price incl. VAT
19
screw
319532
$3,65 Unit Price incl. VAT
20
Spring washer
709047
$0,08 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
22
Tuyau maître-cylindre de frein D-unité ABS
1C003741
$27,07 Unit Price incl. VAT
23
Durit de frein maître-cylindre G. - unité ABS
1C003739
Not Available
24
Tuyau de frein unité ABS-étrier de frein avant
1C003699
Not Available
25
Durit de frein arrière - jonction - unité ABS
1C003738
Not Available
26
Tuyaux frein arrière
1C003737
Not Available
27
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
28
Hose clamp
298729
$0,34 Unit Price incl. VAT
29
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
30
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
