1
Engine displacement
300
2
Model
GTS
3
Year
2020
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog

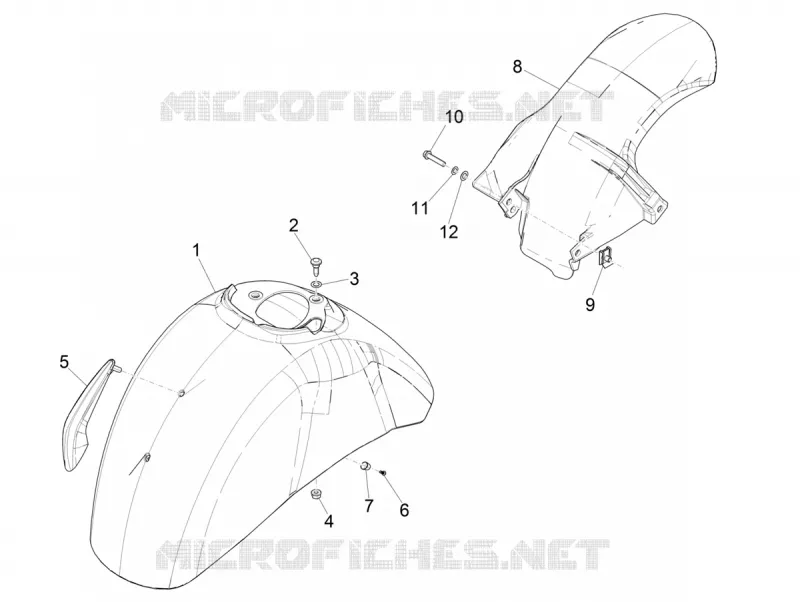

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers (ABS)
by
Crankcase
Wheel huosing - Mudguard
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
1
Front mudguard
65102900R7
$175,83 Unit Price incl. VAT
1
Garde-boue avant
65102900G02
$181,99 Unit Price incl. VAT
1
Garde-boue Av.
65102900LD
$178,08 Unit Price incl. VAT
1
Garde-boue Av.
65102900NV
$175,83 Unit Price incl. VAT
1
Front mudguard
65102900HQ
$175,83 Unit Price incl. VAT
1
Garde-boue avant
65102900LG
$67,39 Unit Price incl. VAT
1
Front mudguard
651029
$94,69 Unit Price incl. VAT
1
Front mudguard
65102900BR
$175,83 Unit Price incl. VAT
1
Garde-boue Av.
65102900VY
$175,83 Unit Price incl. VAT
1
Front mudguard
6510295090
$175,83 Unit Price incl. VAT
1
Garde-boue Av.
65102900HT
$175,83 Unit Price incl. VAT
1
Garde-boue Av.
65102900D03
$175,83 Unit Price incl. VAT
2
Screw with shank M6x25
648294
$3,65 Unit Price incl. VAT
3
Spring washer
709047
$0,08 Unit Price incl. VAT
4
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
5
Crête supérieure
1B005785
$38,27 Unit Price incl. VAT
6
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
7
Cap
192598
$0,42 Unit Price incl. VAT
8
Garde-boue Ar.
1B005489
$23,22 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
screw M6x35
414838
$0,67 Unit Price incl. VAT
11
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
12
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
