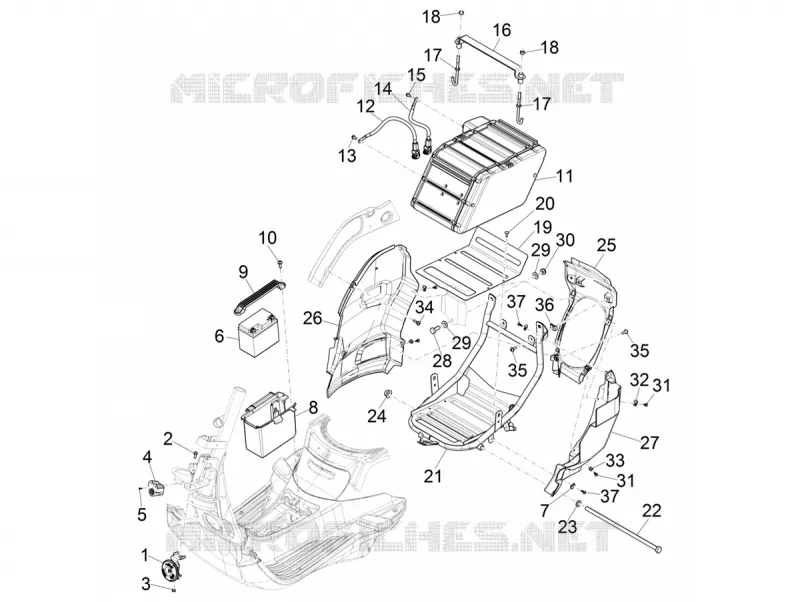

Remote control switches - Battery - Horn FOR Elettrica 70 km/h Euro 5 FROM 2021

ENGINE ASSEMPLY

Fork/steering tube - Steering bearing unit

Remote control switches - Battery - Horn

1

Horn

58034R

$25,22 Unit Price incl. VAT

2

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

3

Nut

709116

$0,59 Unit Price incl. VAT

4

Buzzer

1D003014

$25,28 Unit Price incl. VAT

5

Self tapping screw 2,9x9,5

015727

$1,26 Unit Price incl. VAT

6

Battery PTXL-BS 12V 6Ah Piaggio

1R000317

$108,00 Unit Price incl. VAT

6

Battery (Yuasa) 12V-6Ah

584662

$246,89 Unit Price incl. VAT

7

Plate

CM017408

$0,25 Unit Price incl. VAT

8

Battery holder tray

1B004967

$16,15 Unit Price incl. VAT

9

Battery clamp

1B0009865

$4,62 Unit Price incl. VAT

10

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

11

Batterie complète

1A014918

$2 903,89 Unit Price incl. VAT

12

Câble négatif de la batterie

CM293701

$76,85 Unit Price incl. VAT

13

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

14

Câble positif de la batterie

CM293601

$76,85 Unit Price incl. VAT

15

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

16

Plaque batterie

1B0057565

$15,37 Unit Price incl. VAT

17

Tirant pour boite vitesse cpl.

1B005958

$14,04 Unit Price incl. VAT

18

Low self-locking nut

709052

$1,10 Unit Price incl. VAT

19

Tapis de batterie

1B005187

$15,37 Unit Price incl. VAT

20

Rivet

567642

$1,84 Unit Price incl. VAT

21

Battery support subassembly with I.P.

1B004253

$184,44 Unit Price incl. VAT

22

Hex socket screw M12x324

597914

$14,12 Unit Price incl. VAT

23

Washer

266845

$0,50 Unit Price incl. VAT

24

Nut M12

271740

$0,67 Unit Price incl. VAT

25

Protection arrière

1B006848

$15,20 Unit Price incl. VAT

26

Protection arrière D

1B004634

$38,43 Unit Price incl. VAT

27

Protection arrière G

1B004633

$38,43 Unit Price incl. VAT

28

Hex screw

1C000608

$3,65 Unit Price incl. VAT

29

Flat washer

178790

$0,51 Unit Price incl. VAT

30

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

31

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

32

Spring plate

CM017410

$0,34 Unit Price incl. VAT

33

Expansion plug

157716

$0,08 Unit Price incl. VAT

34

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

35

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

36

Spring plate M6

254485

$0,34 Unit Price incl. VAT

37

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
