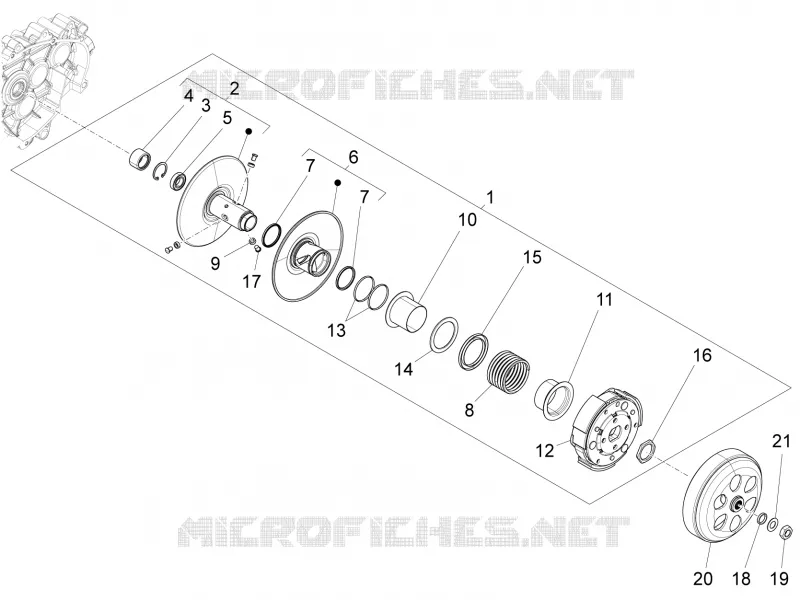

Driven pulley
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
1
Driven pulley complete with clutch
CM167102
$250,05 Unit Price incl. VAT
2
Complete fixed driven half-pulley
B017979
$98,69 Unit Price incl. VAT
3
Snap ring
006628
$0,34 Unit Price incl. VAT
4
Cage à rouleau 22x29x18
1A013798R
$16,90 Unit Price incl. VAT
5
Ball bearing
880512
$15,97 Unit Price incl. VAT
6
Complete movable half-driven pulley
B017974
$46,57 Unit Price incl. VAT
7
Gasket ring
289950
$9,17 Unit Price incl. VAT
8
Variator spring
B013304
$16,48 Unit Price incl. VAT
9
Roller
431091
$0,67 Unit Price incl. VAT
10
Pulley side cap
880539
$12,95 Unit Price incl. VAT
11
Clutch side cap
880543
$10,68 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
CM1672015
$141,75 Unit Price incl. VAT
13
Gasket
289840
$1,26 Unit Price incl. VAT
14
Sliding washer
880540
$2,69 Unit Price incl. VAT
15
Spring seat
880541
$4,79 Unit Price incl. VAT
16
Ring nut
289955
$8,58 Unit Price incl. VAT
17
Pin
B014466
$1,43 Unit Price incl. VAT
18
Spacer
B014652
$3,65 Unit Price incl. VAT
19
Nut
B016992
$0,50 Unit Price incl. VAT
20
Clutch drum
1A004103
$39,26 Unit Price incl. VAT
21
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
