Remote control switches - Battery - Horn for GILERA PIAGGIO VESPA Beverly ie Tourer E3 from 2008

Remote control switches - Battery - Horn

1

CLACSON 12V - CC

CM071814

$38,42 Unit Price incl. VAT

2

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

3

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

4

ROSETTA CONICA ZIGRINATA

834951

$0,15 Unit Price incl. VAT

5

Bracket

622431

$6,30 Unit Price incl. VAT

6

Protection relay

584363

$10,76 Unit Price incl. VAT

7

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

8

RONDELLA PIANA 16x4,2x1

013963

$0,19 Unit Price incl. VAT

9

PIASTRINA ELASTICA

CM017406

$3,65 Unit Price incl. VAT

10

Rem. control switch 12V-30A

581139

Not Available

11

Rem. control switch 12V-30A

58099R

$36,86 Unit Price incl. VAT

12

Self-tap screw

576189

$0,05 Unit Price incl. VAT

13

PIASTRINA ELASTICA

CM017409

$0,08 Unit Price incl. VAT

14

Bracket

620109

$8,16 Unit Price incl. VAT

15

TBCIC Screw M5x12

015935

$4,82 Unit Price incl. VAT

16

RONDELLA ELASTICA 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

17

Electromagnetic switch support bracket

620043

$5,38 Unit Price incl. VAT

18

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

19

RONDELLA

016603

$2,25 Unit Price incl. VAT

20

TELERUTTORE AVVIAM 150

582690

$27,87 Unit Price incl. VAT

21

Fuse 30A

581440

Not Available

22

Flexible support

582906

Not Available

23

CINGHIETTA

090854

$8,01 Unit Price incl. VAT

24

BATTERIA 12V-12AH (YUASA YTX14-BS)

638733

$387,53 Unit Price incl. VAT

25

VITE

581596

$0,07 Unit Price incl. VAT

26

RONDELLA ELASTICA 8,5x5,1x1,5

016405

$0,08 Unit Price incl. VAT

27

VITE TE M6X12

031086

$0,08 Unit Price incl. VAT

28

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

29

Voltage regulator

58086R

Not Available

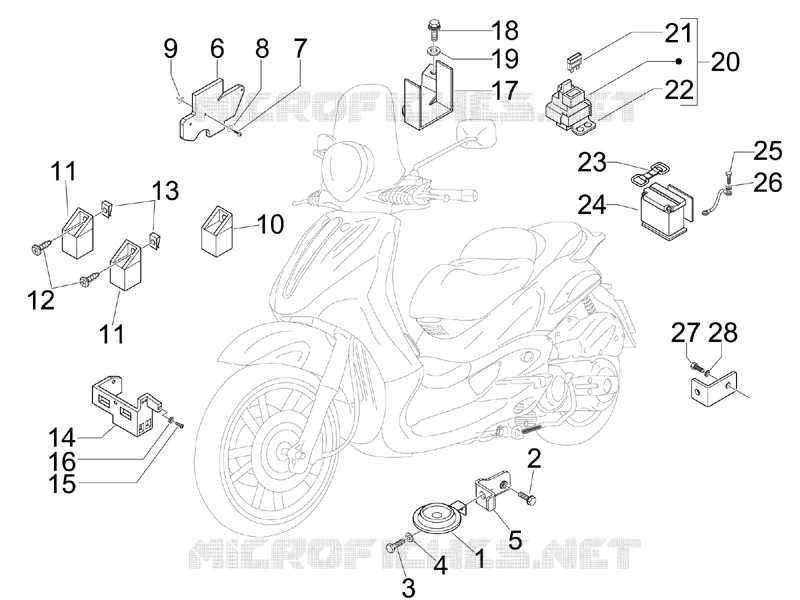

Find the detailed Remote control switches - Battery - Horn GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
