1
Engine displacement
400
2
Model
MP3
3
Year
2020
4
Trim
MP3 400 Euro 5
5
Parts Catalog
Control pedals - Levers
6
Parts Diagram
Parts Catalog
LOCKS
by
Cdi magneto assy
Control pedals - Levers
1
1
2
2
2
2
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
35
35
35
35
36
36
36
36
36
36
36
37
1
Brake m.cyl.
CM082902
$179,38 Unit Price incl. VAT
1
Maître-cylindre de frein
CM082903
$140,00 Unit Price incl. VAT
2
Bride de support de maître-cylindre avec pédale de frein
1C004997
$116,62 Unit Price incl. VAT
2
Bride de support de maître-cylindre avec pédale de frein
1C004867
$110,05 Unit Price incl. VAT
3
Soufflet
1B006345
$7,34 Unit Price incl. VAT
4
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
5
Flat washer
178790
$0,51 Unit Price incl. VAT
6
Bush
650636
$3,65 Unit Price incl. VAT
7
Spring
650670
$1,54 Unit Price incl. VAT
8
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
9
Pin
650651
$5,38 Unit Price incl. VAT
10
Goupille
1C004752
$0,66 Unit Price incl. VAT
11
Tuyau de frein soupape avt. ABS
1C005730R
$73,26 Unit Price incl. VAT
12
Vis bride
1C001475
$0,22 Unit Price incl. VAT
13
Hex socket screw M8x16
031116
$3,70 Unit Price incl. VAT
14
Low self-locking nut
709052
$1,10 Unit Price incl. VAT
15
Fourchette de pédale avec pièces internes
1C004851
$17,79 Unit Price incl. VAT
16
Protection pédale frein
1B006304
$3,56 Unit Price incl. VAT
17
Vis bride
1C001475
$0,22 Unit Price incl. VAT
18
stop Button
642032
$22,15 Unit Price incl. VAT
19
Brake oil tank
274598
$9,00 Unit Price incl. VAT
20
Cover
498431
$8,31 Unit Price incl. VAT
21
Tuyau de frein
1C005546
$29,94 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
23
Spring plate
CM017409
$0,08 Unit Price incl. VAT
24
Tuyau de retour du réservoir d'huile à la pompe du dispositif antiroulis
1C004657
$1,28 Unit Price incl. VAT
25
Hose clamp
CM001912
$3,65 Unit Price incl. VAT
26
Hose clamp
CM002907
$0,42 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
28
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
29
Pressure adjusting valve
CM082804
$100,11 Unit Price incl. VAT
30
Vis à tête hexagonale bridée M6x40
1C003711
$0,33 Unit Price incl. VAT
31
Bracket with up
2B000823
$17,83 Unit Price incl. VAT
32
Pressure adjusting valve
CM082806
$91,80 Unit Price incl. VAT
33
Distribution frame support bracket with U.P.
650648
$24,90 Unit Price incl. VAT
34
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
35
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
36
Gasket
127927
$0,25 Unit Price incl. VAT
37
Tuyau de frein
1C005541
$24,83 Unit Price incl. VAT

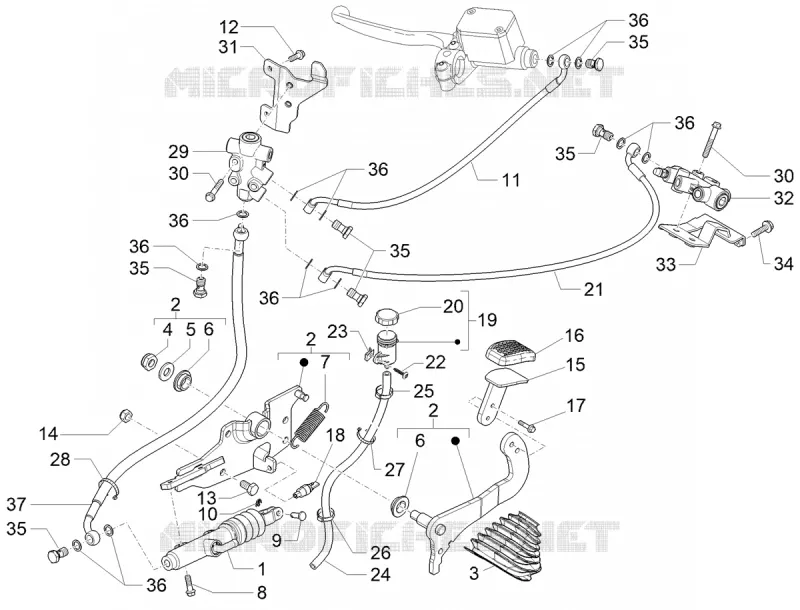

Find the detailed Control pedals - Levers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
