1
Engine displacement
300
2
Model
MP3
3
Year
2020
4
Trim
MP3 300 HPE / 300 HPE Sport Euro 5 ABS
5
Parts Catalog

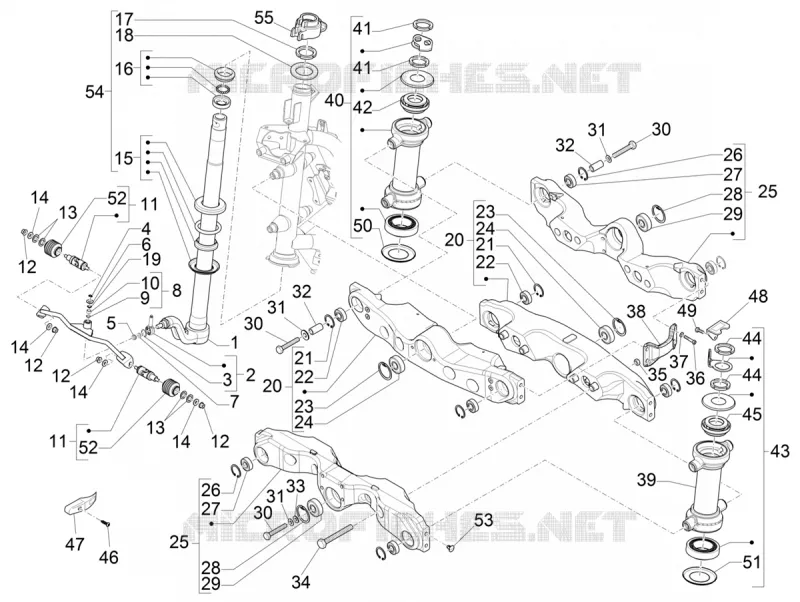

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Transmissions
by
Remote control switches - Battery - Horn
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
11
12
12
12
12
13
13
14
14
14
15
16
17
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
31
31
31
32
32
33
34
35
36
37
38
39
40
41
41
42
43
44
44
45
46
47
48
49
50
51
52
52
53
54
55
1
Steering control tube with i.p.
667831
Not Available
2
Steering tube control axis
622751
$35,81 Unit Price incl. VAT
3
Snap ring
006628
$0,34 Unit Price incl. VAT
4
Safety washer
006408
$0,09 Unit Price incl. VAT
5
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
6
Washer
006032
$0,56 Unit Price incl. VAT
7
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
8
Complete steering control tie rod.
622744
$70,77 Unit Price incl. VAT
9
Gasket ring
167018
$6,35 Unit Price incl. VAT
10
Roller cage
167016
$5,67 Unit Price incl. VAT
11
Complete cardan joint
666901
$107,96 Unit Price incl. VAT
12
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
13
Washer 16.2x25x1.5
666546
$4,36 Unit Price incl. VAT
14
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
15
Lower steering bearing
65007545
$25,55 Unit Price incl. VAT
16
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
17
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
18
Steering security plate
582787
$3,65 Unit Price incl. VAT
19
O-ring 8,73x1,78-viton
224202
$0,66 Unit Price incl. VAT
20
Lower complete rear suspension arm
646556
$178,60 Unit Price incl. VAT
21
Snap ring
006635
$0,25 Unit Price incl. VAT
22
Ball bearing
601345
$12,69 Unit Price incl. VAT
23
Circlip
006647
$1,10 Unit Price incl. VAT
24
Ball bearing
601467
$18,36 Unit Price incl. VAT
25
Upper complete rear suspension arm
646561
$166,91 Unit Price incl. VAT
26
Snap ring
006635
$0,25 Unit Price incl. VAT
27
Ball bearing
601345
$12,69 Unit Price incl. VAT
28
Circlip
006647
$1,10 Unit Price incl. VAT
29
Ball bearing
601467
$18,36 Unit Price incl. VAT
30
Hex screw M10x30
031157
$0,51 Unit Price incl. VAT
31
Washer
012535
$0,08 Unit Price incl. VAT
32
Bushing
621288
$6,30 Unit Price incl. VAT
33
Flat washer
178790
$0,51 Unit Price incl. VAT
34
screw
030113
$3,65 Unit Price incl. VAT
35
Nut
564878
$2,99 Unit Price incl. VAT
36
screw
975855
$3,65 Unit Price incl. VAT
37
Spring washer
709047
$0,08 Unit Price incl. VAT
38
Suspension arm connection bracket
646543
$35,51 Unit Price incl. VAT
39
Lateral headstock with U.P.
1C003013
$79,00 Unit Price incl. VAT
40
Steering bearing assy. R.H.
6471835
Not Available
41
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
42
Upper thrust ring
600750
Not Available
43
Steering bearing assy. L.H.
6007705
$139,05 Unit Price incl. VAT
44
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
45
Upper thrust ring
600750
Not Available
46
Screw M5x22
828662
$0,25 Unit Price incl. VAT
47
Cardan joint small cover
666200
$20,60 Unit Price incl. VAT
48
Brake piping slider
624854
$1,97 Unit Price incl. VAT
49
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
50
Guard washer
600356
$0,94 Unit Price incl. VAT
51
Guard washer
600356
$0,94 Unit Price incl. VAT
52
Protective sleeve
666244
$15,22 Unit Price incl. VAT
53
Fastening button
1C002195
$1,20 Unit Price incl. VAT
54
Groupe couronnes complet
1C0047975
Not Available
55
Protection collar
1C004387
$2,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
