Oil pump for GILERA PIAGGIO VESPA Medley 150 4T ie Euro 5 ABS from 2021

Oil pump

1

Pompe huile complète

B017915

$13,03 Unit Price incl. VAT

2

Oil pump/crankcase gasket

B015460

$0,50 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

6

Belleville spring

B015991

$0,34 Unit Price incl. VAT

7

Oil pump chain

B015459

$4,54 Unit Price incl. VAT

8

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

9

O-Ring seal ring

B015451

$0,50 Unit Price incl. VAT

10

Rondelle joint-spi

1A018661

$0,50 Unit Price incl. VAT

11

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

12

Tge tendeur de chaîne

1A019017

$8,73 Unit Price incl. VAT

13

Screw w/ flange M6x25

1A000350

$2,25 Unit Price incl. VAT

14

Chain tensioner rod spacer

B015445

$0,76 Unit Price incl. VAT

15

Chaîne de distribution

1A006278

$14,23 Unit Price incl. VAT

16

Chain tensioner sliding block

1A006294

$8,31 Unit Price incl. VAT

17

Timing system cover

B0154155

Not Available

18

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

19

O-Ring seal ring

B015449

$4,96 Unit Price incl. VAT

20

Gasket ring 24.35.7

1A005743

$10,42 Unit Price incl. VAT

21

Hex socket screw M5x14

B016455

$0,34 Unit Price incl. VAT

22

Plain washer

487937

$0,09 Unit Price incl. VAT

23

Pan oil

B013437

$22,19 Unit Price incl. VAT

24

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

25

Sump gasket

B014152

$2,02 Unit Price incl. VAT

26

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

27

Chain tensioner bracket

289919

Not Available

28

Cylinder/chain tensioner gasket

B015444

$4,82 Unit Price incl. VAT

29

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

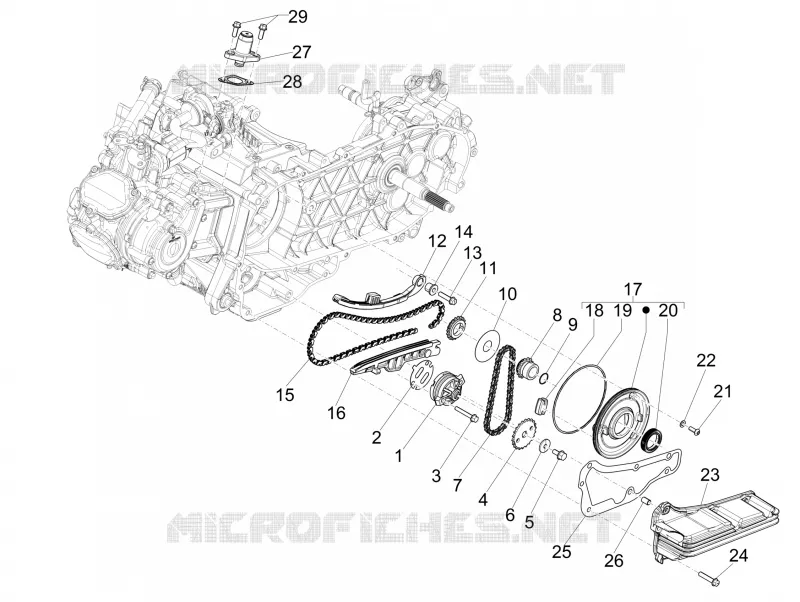

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
