1
Engine displacement
150
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 150 4T ie Euro 3 - Euro 4 ABS
5
Parts Catalog

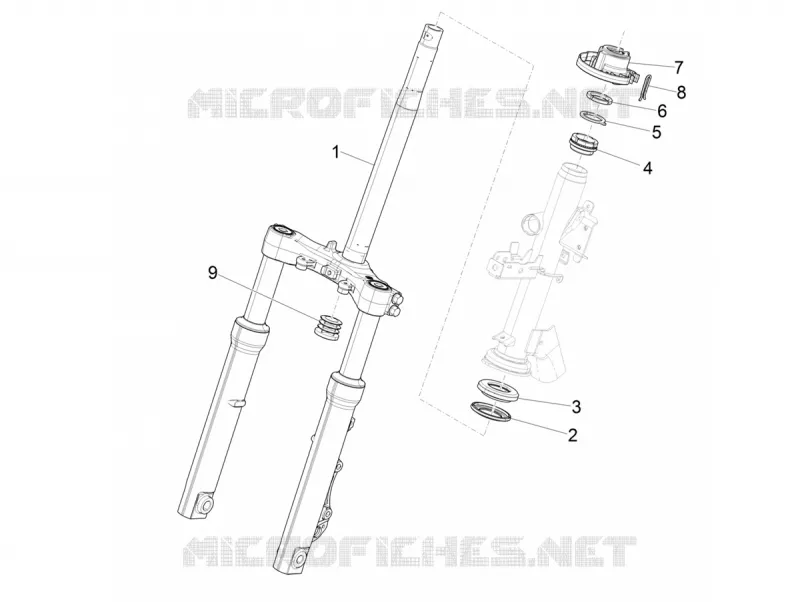

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Swinging arm
by
Cylinder-piston-wrist pin unit
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
1
Fourchette compl.
1C002901
$385,38 Unit Price incl. VAT
2
Rondelle de protection
5A001442
$4,78 Unit Price incl. VAT
3
Lower steering bearing
1C0016085
$48,60 Unit Price incl. VAT
4
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
5
Steering security plate
582787
$3,65 Unit Price incl. VAT
6
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
7
Protection collar
1C004616
$2,26 Unit Price incl. VAT
8
Elastic spring
672491
$1,01 Unit Price incl. VAT
9
Cover
601026
$0,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
