CENTRAL COVER - FOOTRESTS for GILERA PIAGGIO VESPA Medley 125 Euro 5 ABS from 2023

HEADLIGHT - INDICATORS

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

CENTRAL COVER - FOOTRESTS

1

Capot central

1B0016950000C

$1,75 Unit Price incl. VAT

2

Tunnel cpl.

1B006571000NS

$70,13 Unit Price incl. VAT

2

Tunnel cpl.

1B006571000MN

$74,46 Unit Price incl. VAT

2

Tunnel cpl.

1B006571

$21,08 Unit Price incl. VAT

3

Hex socket screw M4x16

959559

$0,25 Unit Price incl. VAT

4

Scheibe

959263

$0,67 Unit Price incl. VAT

5

Spring plate M6

254485

$0,34 Unit Price incl. VAT

6

screw

CM179202

$0,25 Unit Price incl. VAT

7

Gripper clip

D9004468091

$0,34 Unit Price incl. VAT

8

Grille

1B0017010000C

$1,53 Unit Price incl. VAT

9

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

10

Repose-pied droit

1B0065680000C

Not Available

11

Tapis gauche

1B0065660000C

$12,63 Unit Price incl. VAT

12

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

13

Spring plate M6

254485

$0,34 Unit Price incl. VAT

14

Déflecteur D

1B006359

Not Available

14

Déflecteur D

1B006359000NU

Not Available

15

Déflecteur G

1B006360000NU

$19,71 Unit Price incl. VAT

15

Déflecteur G

1B006360

$4,49 Unit Price incl. VAT

16

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

17

Spring plate

CM017410

$0,34 Unit Price incl. VAT

18

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

19

Repose-pieds passager D complet

1B006637000NU

$27,40 Unit Price incl. VAT

20

Repose-pieds passager G complet

1B006635000NU

$27,40 Unit Price incl. VAT

21

Vis M5x12

AP8152267

$0,34 Unit Price incl. VAT

22

Spring plate

CM017410

$0,34 Unit Price incl. VAT

23

screw

781166

$3,65 Unit Price incl. VAT

23

Nut M10 6H

020110

$0,15 Unit Price incl. VAT

24

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

25

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

26

Self-tap screw

CM178604

$0,08 Unit Price incl. VAT

27

Spring plate

CM017410

$0,34 Unit Price incl. VAT

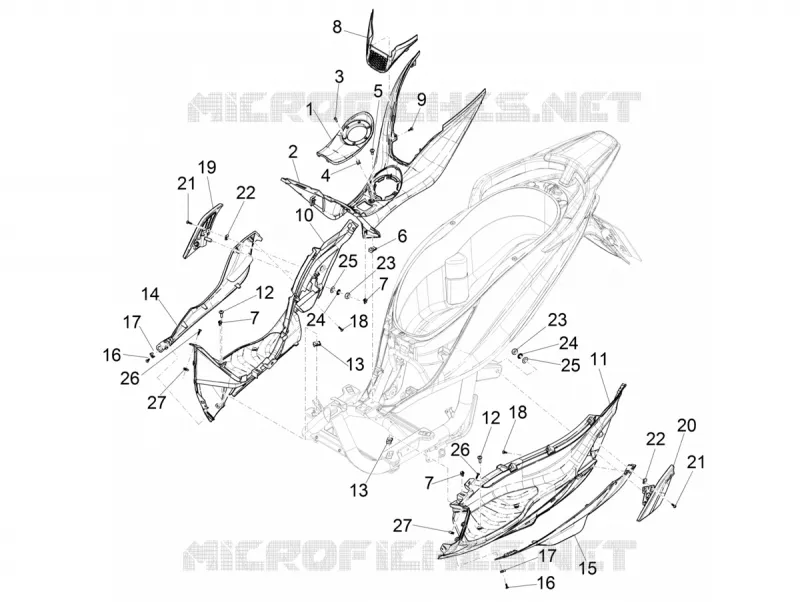

Find the detailed CENTRAL COVER - FOOTRESTS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
