1
Engine displacement
50
2
Model
LIBERTY
3
Year
2022
4
Trim
Liberty 50 Corporate Euro 5
5
Parts Catalog

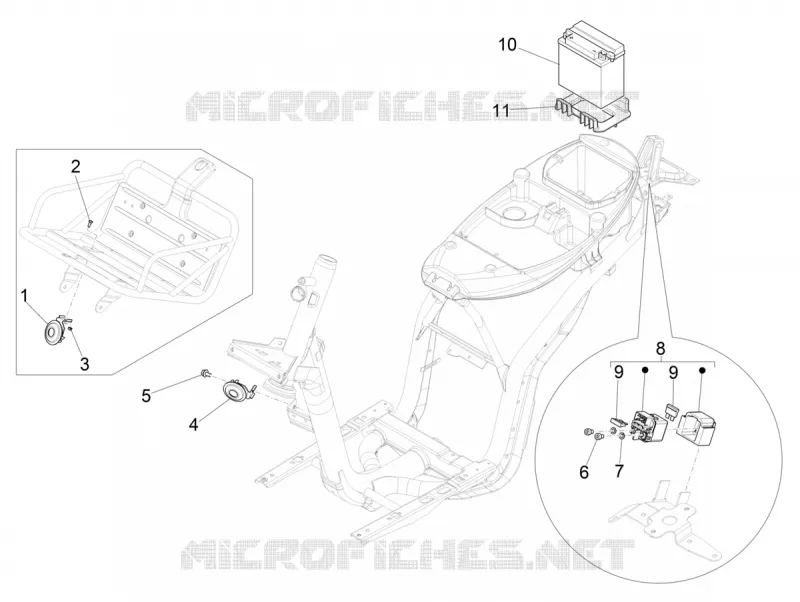

Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Front wheel
by
Stand/s
Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
9
10
10
11
1
Horn 12v cc
58092R
$26,48 Unit Price incl. VAT
2
screw M6x16
018631
$3,65 Unit Price incl. VAT
3
Nut
219277
$0,16 Unit Price incl. VAT
4
Horn 12v cc
58092R
$26,48 Unit Price incl. VAT
5
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
6
screw
581596
$0,07 Unit Price incl. VAT
7
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
8
Starter relay
1D001697R
Not Available
9
Fuse 30A
CM225730
$0,51 Unit Price incl. VAT
10
Battery PTX12-BS 12V-10Ah (Piaggio)
1R000318
$121,77 Unit Price incl. VAT
10
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
11
Battery holder
657037
$3,78 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
