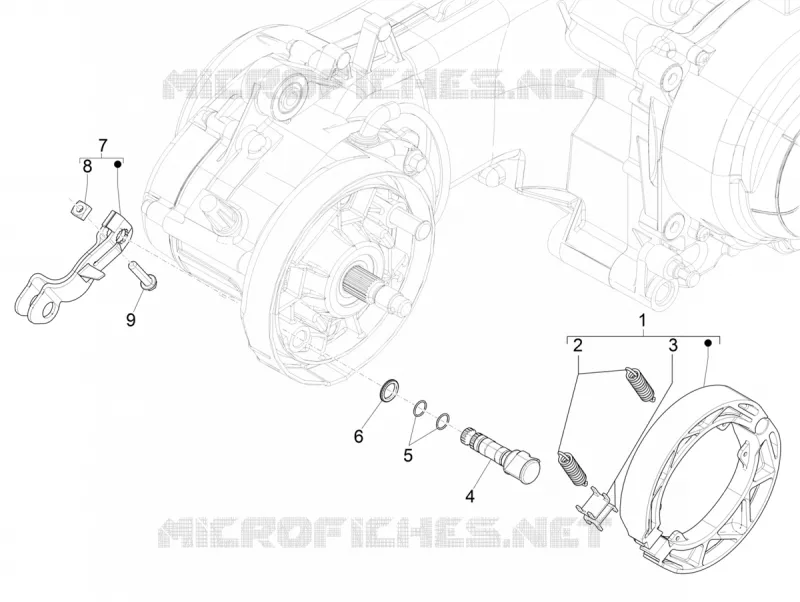

REAR BRAKE - SHOES
1
2
3
3
4
5
6
7
8
9
1
Pair of Rear brake shoes
56293R5
Not Available
2
Brake shoes return spring
647384
$1,43 Unit Price incl. VAT
3
Plate
647383
$1,68 Unit Price incl. VAT
3
Plate
266724
$18,39 Unit Price incl. VAT
4
Brake lever shaft
B014502
$10,84 Unit Price incl. VAT
5
Packing
B014507
$0,25 Unit Price incl. VAT
6
Gasket ring
273419
$3,70 Unit Price incl. VAT
7
Rear brake lever
833788
$17,32 Unit Price incl. VAT
8
Square nut
828862
$2,99 Unit Price incl. VAT
9
Screw w/ flange
B011784
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
