HEADLIGHT - INDICATORS
6
Parts Diagram
Parts Catalog
MAIN WIRING HARNESS
by
Windshield - Glass

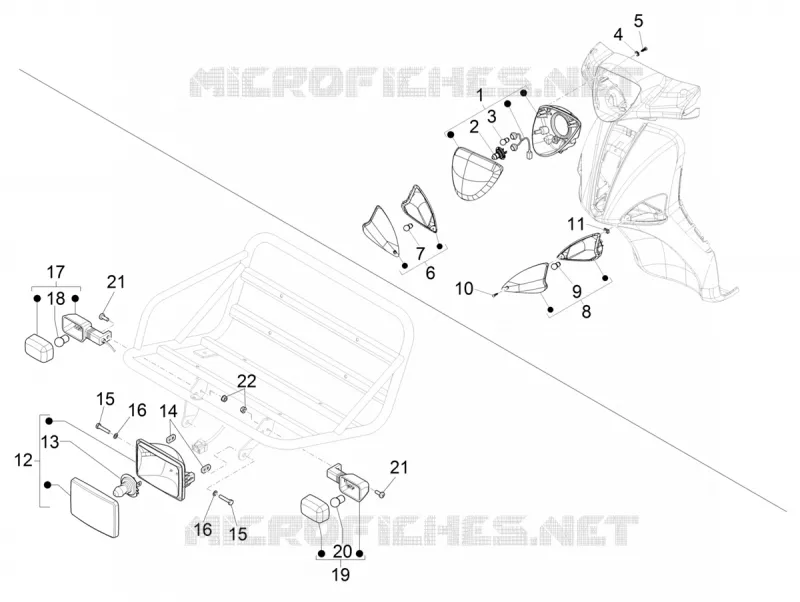

HEADLIGHT - INDICATORS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
20
21
21
22
1
Headlamp, assy
1D000171R
$56,83 Unit Price incl. VAT
2
12V-5W bulb
2920225
$1,10 Unit Price incl. VAT
3
Lamp HS1 35+35W 12V
231215
$36,45 Unit Price incl. VAT
4
Flat washer Ø5,3xØ14x1
097733
$3,65 Unit Price incl. VAT
5
screw
834065
$0,08 Unit Price incl. VAT
6
Front right turn indicator
5847795
Not Available
7
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
8
Front left turn indicator
5847785
Not Available
9
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
10
screw
015728
$2,95 Unit Price incl. VAT
11
Plate
CM017404
$3,65 Unit Price incl. VAT
12
Reflector, assy.
1D000450
$69,98 Unit Price incl. VAT
13
Lamp HS1 35+35W 12V
231215
$36,45 Unit Price incl. VAT
14
Projector adjustment bracket
1B007261
$1,65 Unit Price incl. VAT
15
screw
030052
$2,95 Unit Price incl. VAT
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Front right turn indicator
581763
$13,78 Unit Price incl. VAT
18
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
19
Front left turn indicator
581764
$13,78 Unit Price incl. VAT
20
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
21
screw M6x16
018631
$3,65 Unit Price incl. VAT
22
Nut
219277
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
