1
Engine displacement
50
2
Model
LIBERTY
3
Year
2023
4
Trim
Liberty 50 Corporate Euro 5
5
Parts Catalog

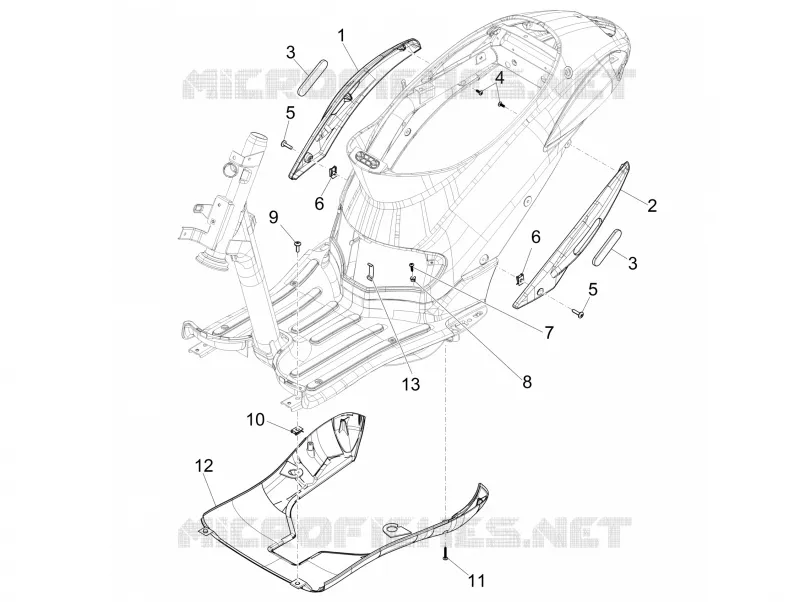

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Swinging arm
by
Meter combination - Cruscotto
Side cover - Spoiler
1
1
2
2
3
3
3
3
4
4
5
5
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
1
Protection latérale D
CM020101000Q
$4,98 Unit Price incl. VAT
2
Protection latérale G
CM020102000Q
$4,98 Unit Price incl. VAT
3
Lateral reflector
58231R5
$2,69 Unit Price incl. VAT
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
8
Expansion plug
157716
$0,08 Unit Price incl. VAT
9
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
screw
259577
$0,17 Unit Price incl. VAT
12
Spoiler
1B0049900000Q
$38,71 Unit Price incl. VAT
13
Spring
622236
$6,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
