Crankcase cover - Crankcase cooling FOR Liberty 50 Corporate Euro 5 FROM 2022

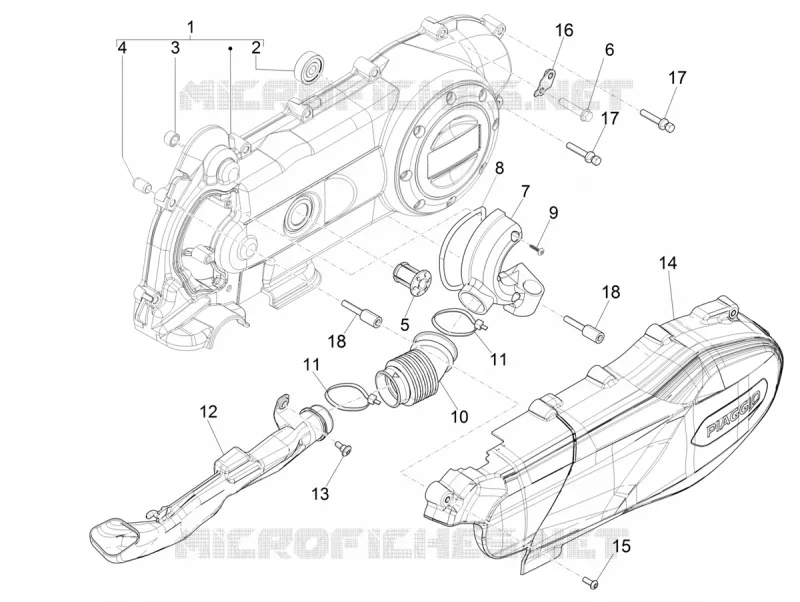

Crankcase cover - Crankcase cooling

1

Transmission cover

1A004716

$113,40 Unit Price incl. VAT

2

Bearing

82521R

$9,32 Unit Price incl. VAT

3

Bush Ã˜8xÃ˜12x8

431860

$3,70 Unit Price incl. VAT

4

Pin d.9,5 h=15

B015956

$0,75 Unit Price incl. VAT

5

Transmission cover cap

1A004645

$1,26 Unit Price incl. VAT

6

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

7

Cooling Cover

969804

Not Available

8

Gasket

435251

$5,45 Unit Price incl. VAT

9

screw

435295

$2,99 Unit Price incl. VAT

10

Bellows

464656

$27,67 Unit Price incl. VAT

11

Hose clamp

709519

$5,38 Unit Price incl. VAT

12

Cooling tube

CM023802

$18,34 Unit Price incl. VAT

13

screw

CM179202

$0,25 Unit Price incl. VAT

14

Cover soundproofing material

1A010606

$77,91 Unit Price incl. VAT

15

Hex socket screw M5x14

B016455

$0,34 Unit Price incl. VAT

16

Bracket with up

1A009917

$1,48 Unit Price incl. VAT

17

Antitampering screw M6x30

1A011419

$1,21 Unit Price incl. VAT

18

Special screw

1A009906

$2,81 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
