by

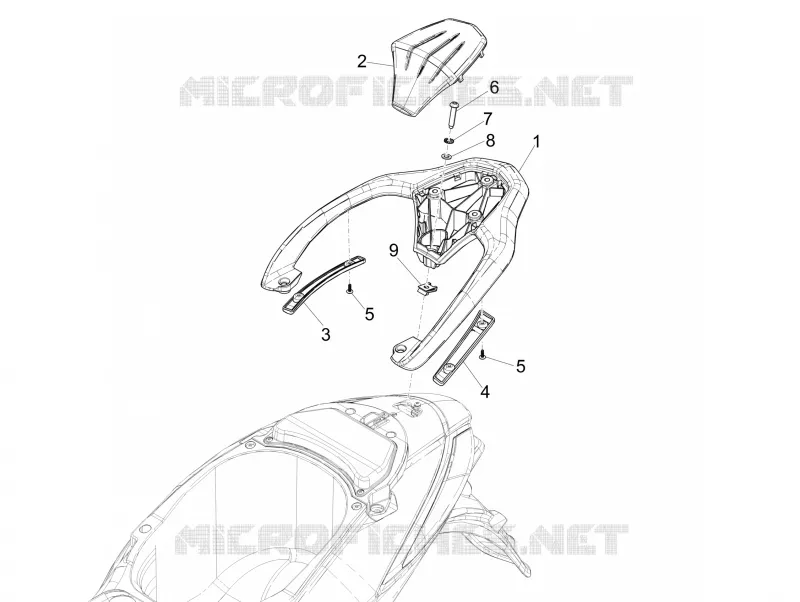

Rear luggage rack
1
1
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
1
Porte-bagages arrière
1B002026000NS
$76,38 Unit Price incl. VAT
1
Rear luggage rack
1B00202600090
$127,87 Unit Price incl. VAT
2
Luggage rack cover
1B0039460000C
$6,15 Unit Price incl. VAT
3
RH cover
1B001902
$19,99 Unit Price incl. VAT
4
LH cover
1B001901
$19,99 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
6
Torx Screw
656894
$0,84 Unit Price incl. VAT
7
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
8
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
9
Spring plate M8
575268
$1,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
