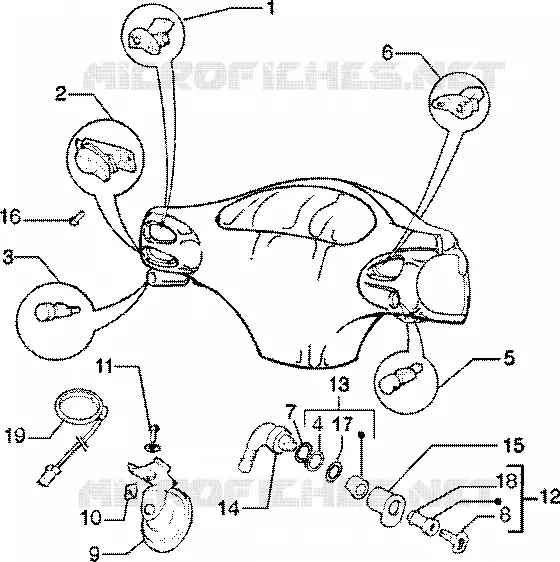

Electrical device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Headlight selector
294877
$9,18 Unit Price incl. VAT
2
Turn signal lamps switch
294723
$12,02 Unit Price incl. VAT
3
Horn button
58058R
$7,08 Unit Price incl. VAT
3
Horn button
293550
Not Available
4
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
5
Start pushbutton
58057R
$7,08 Unit Price incl. VAT
5
Start pushbutton
293549
Not Available
6
Cover
584427
Not Available
6
Light switch
293571
$21,87 Unit Price incl. VAT
7
Spring
253937
$0,25 Unit Price incl. VAT
8
Hewn key with transponder
575810
$55,57 Unit Price incl. VAT
9
Horn
CM071803
$35,10 Unit Price incl. VAT
9
Horn
58033R
Not Available
9
Horn
294828
$10,89 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
Screw w/ flange
436788
Not Available
12
Cylinder set
573512
Not Available
12
Cylinder set
576825
$137,64 Unit Price incl. VAT
13
Complete lock block
298903
Not Available
14
Key switch
580621
Not Available
15
Lock body
298581
Not Available
16
Self tapping screw 3,5x13
258403
$2,95 Unit Price incl. VAT
17
Flat washer
298594
$1,01 Unit Price incl. VAT
18
Gasket ring
298731
$0,25 Unit Price incl. VAT
19
Immobilizer antenna
828800
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
