1
Engine displacement
125
2
Model
LIBERTY
3
Year
2015
4
Trim
Liberty iGet 4T 3V ie ABS
5
Parts Catalog

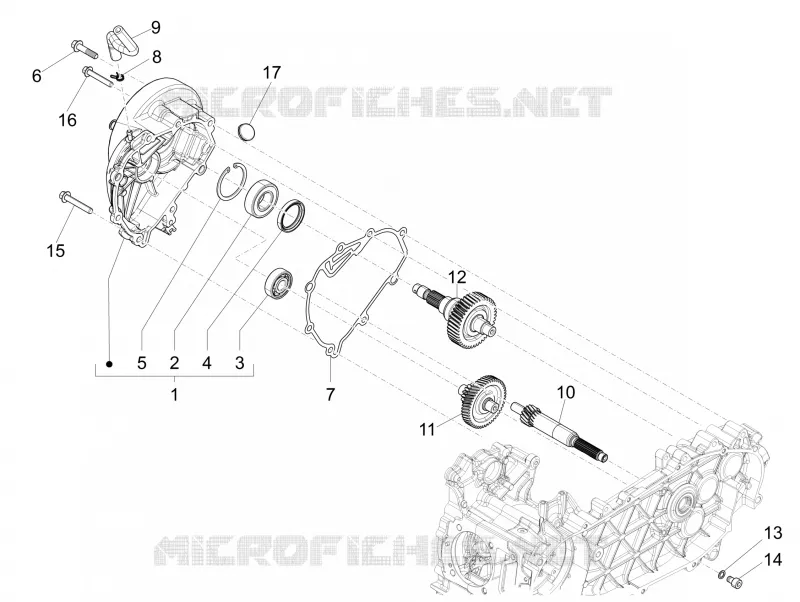

Reduction unit
6
Parts Diagram
Parts Catalog
CYLINDER HEAD - VALVES
by
Saddle/seats
Reduction unit
10
10
10
10
11
11
11
11
12
12
12
12
12
12
12
12
12
12
13
14
8
1
1
2
2
3
3
4
4
5
5
6
6
7
7
12
12
12
12
12
15
14
16
15
9
9
8
9
12
13
9
16
17
17
1
Reducer cover with i.p.
1A0058715
$96,83 Unit Price incl. VAT
2
Bearing 25x52x15
1A005346R
$36,45 Unit Price incl. VAT
3
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
4
Gasket ring 35x47x7
B015623
$5,90 Unit Price incl. VAT
5
Snap ring 52x56,2x2
B016556
$3,65 Unit Price incl. VAT
6
screw M8x35
B016554
Not Available
7
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
8
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
1A007042
Not Available
9
Tuyau évent réducteur complet
1A014306
$2,35 Unit Price incl. VAT
10
Driven pulley shaft z 15
1A000718
$22,45 Unit Price incl. VAT
10
Driven pulley shaft Z=14
1A005707
Not Available
11
Arbre trnsmission
1A006831
Not Available
11
Transmission shaft
B019228
$235,32 Unit Price incl. VAT
12
Rear wheel axle with U.P.
1A000525
Not Available
12
Rear wheel axle with U.P.
B019229
Not Available
12
Rear wheel axle with U.P.
1A005839
$176,76 Unit Price incl. VAT
13
Belleville spring
B015991
$0,34 Unit Price incl. VAT
14
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
15
Screw w/ flange M8x50
1A000319
Not Available
16
Screw w/ flange M8x30
B019024
Not Available
17
Dust gaiter cover
1A000004
$1,09 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
