Front luggage rack FOR Liberty 125 4T iGet Corporate Euro 5 FROM 2023

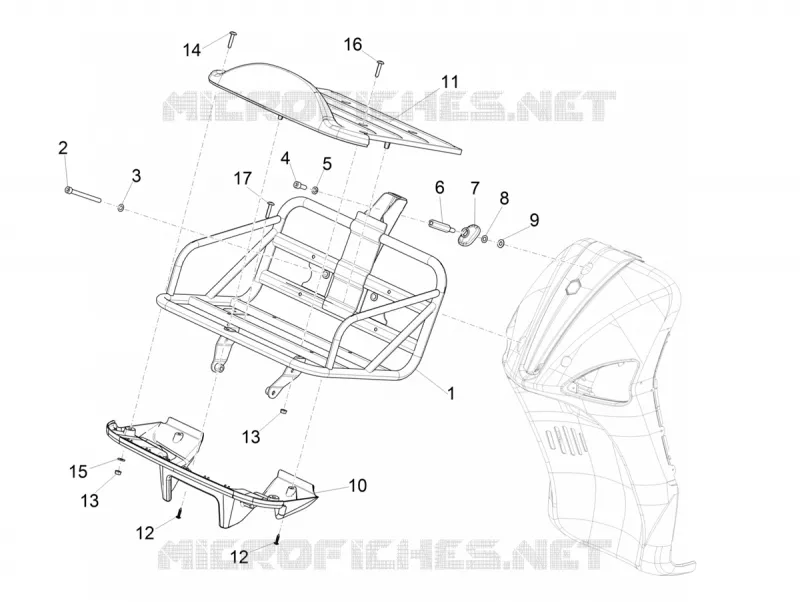

Front luggage rack

1

Porte-bagages avant complet

1B008487

$249,94 Unit Price incl. VAT

2

screw 8M125X90

00H02500272

$3,70 Unit Price incl. VAT

3

Washer

012538

$2,95 Unit Price incl. VAT

4

Cylindrical screw with hexagon socket M8x25

1C003712

$0,50 Unit Price incl. VAT

5

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

6

Entretoise

1B006353

$18,76 Unit Price incl. VAT

7

Rubber spacer

1B000399

$4,05 Unit Price incl. VAT

8

Spring washer

709047

$0,08 Unit Price incl. VAT

9

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

10

screw M6x16

018631

$3,65 Unit Price incl. VAT

11

Masque av.

1B0091530000Q

$23,43 Unit Price incl. VAT

12

Bag holder support

1B0091300000Q

$19,87 Unit Price incl. VAT

13

Self-tapping screw

CM179101

$0,30 Unit Price incl. VAT

14

Nut

219277

$0,16 Unit Price incl. VAT

15

Metric screw

CM179307

$2,99 Unit Price incl. VAT

16

Washer

013755

$2,95 Unit Price incl. VAT

17

Screw metrica

CM179303

$0,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
