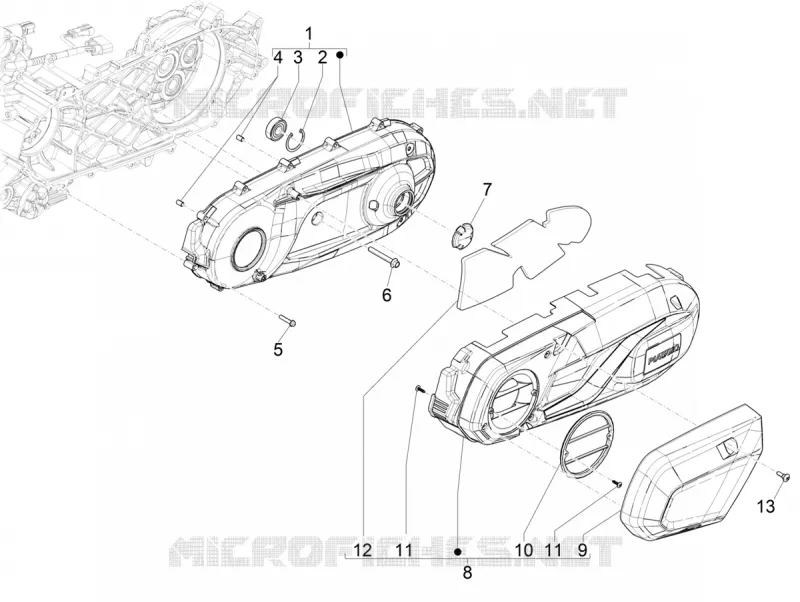

Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
1
Couvercle de la transmission avec pièces internes
1A0167365
$145,55 Unit Price incl. VAT
2
Circlip
825667
$0,42 Unit Price incl. VAT
3
Radial bearing
840277
$10,67 Unit Price incl. VAT
4
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
5
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
6
Screw w/ flange M8x60
874747
$0,72 Unit Price incl. VAT
7
Cache du couvercle de la transmission
1A018488
$1,44 Unit Price incl. VAT
8
Couvercle insonorisant
1A019483
$176,21 Unit Price incl. VAT
8
Couvercle insonorisant
1A018478
$137,21 Unit Price incl. VAT
9
Couvercle de refroidissement
1A018480
$11,52 Unit Price incl. VAT
10
Air filter
833318
$13,95 Unit Price incl. VAT
11
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
12
Insonorisation
1A018837
$46,02 Unit Price incl. VAT
13
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
