1
Engine displacement
400
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 400 4T/4V Euro 5 ABS
5
Parts Catalog

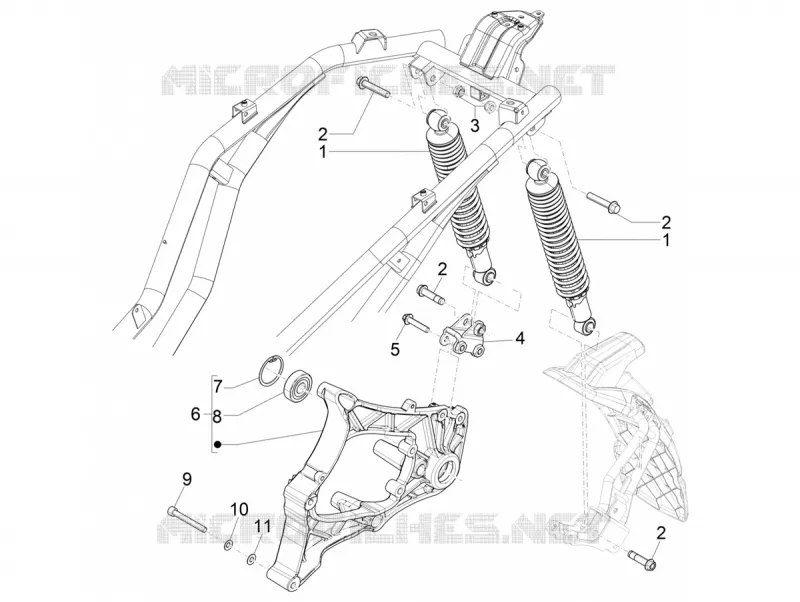

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fork's components (Showa)
by
Air filter
Rear suspension - Shock absorber/s
1
1
2
2
2
2
3
4
5
6
7
8
9
10
11
1
Amortisseur arrière complet
1C004922
$209,21 Unit Price incl. VAT
2
Vis à tête hexagonale bridée
1C005309
$1,37 Unit Price incl. VAT
3
Nut M10 6H
020110
$0,15 Unit Price incl. VAT
4
Bride de fixation de l'amortisseur arrière D
1C005744
$11,45 Unit Price incl. VAT
5
Vis hexagonale M8x40
1C003715
$0,73 Unit Price incl. VAT
6
Bras de suspension droit complet
1A017375
$210,42 Unit Price incl. VAT
7
Circlip
006647
$1,10 Unit Price incl. VAT
8
Ball bearing
82545R
$12,11 Unit Price incl. VAT
9
Hex socket screw
845590
$0,92 Unit Price incl. VAT
10
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
11
Rondelle
1A007552
$0,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
