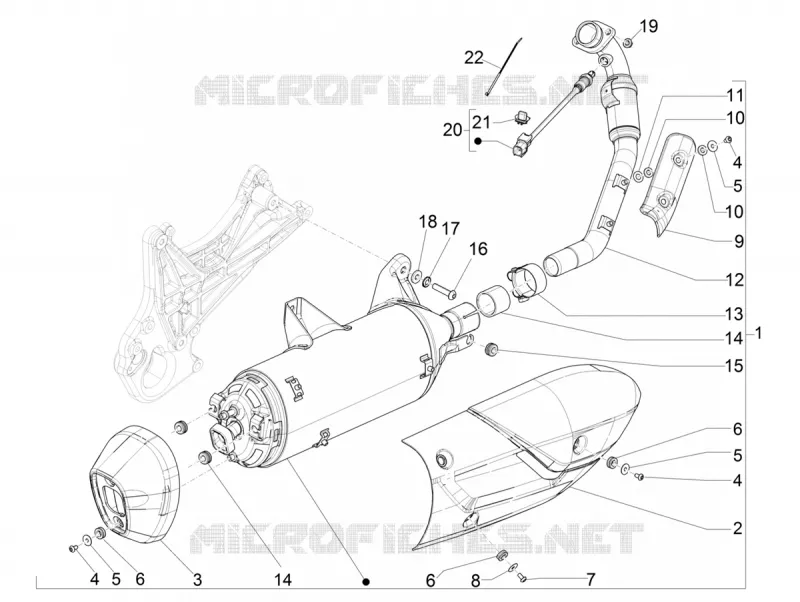

EXHAUST
1
1
2
2
3
3
4
4
4
4
4
4
5
5
5
5
5
5
6
6
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
1
Pot d'échappement avec protection
1A0191455
$1 514,49 Unit Price incl. VAT
1
Pot d'échappement avec protection
1A0180985
$1 514,49 Unit Price incl. VAT
2
Protection
1A019147
$76,05 Unit Price incl. VAT
2
Protection
1A018153
$76,05 Unit Price incl. VAT
3
Lower heat guard protection
1A018131
$53,44 Unit Price incl. VAT
3
Lower heat guard protection
1A019146
$53,44 Unit Price incl. VAT
4
Hex socket screw M5x10
651014
$0,17 Unit Price incl. VAT
4
Vis M5x12
AP8152267
$0,34 Unit Price incl. VAT
5
Flat washer
827526
$0,25 Unit Price incl. VAT
5
Flat washer
844927
$0,50 Unit Price incl. VAT
6
Fairlead
487665
$0,84 Unit Price incl. VAT
7
Hex socket screw M5x10
651014
$0,17 Unit Price incl. VAT
8
Flat washer
827526
$0,25 Unit Price incl. VAT
9
Pare-chaleur supérieur
1A019663
$21,30 Unit Price incl. VAT
10
Spacer
876879
$5,89 Unit Price incl. VAT
11
Shim washer
287073
$0,17 Unit Price incl. VAT
12
Collecteur échap.
1A018121
$245,77 Unit Price incl. VAT
13
Hose clamp
8449404
$10,56 Unit Price incl. VAT
14
Graphite bushing
8263885
$36,93 Unit Price incl. VAT
15
Fairlead
B013302
$5,53 Unit Price incl. VAT
16
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
17
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
18
Flat washer 19,3x8,2x2,5
848452
$0,84 Unit Price incl. VAT
19
Nut
436947
$0,42 Unit Price incl. VAT
20
Sonde lamda
1A014335
$129,71 Unit Price incl. VAT
21
Clip
1A015201
Not Available
22
Description manquante
1A0186745
$1,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
