CASING for GILERA PIAGGIO VESPA SXL 125 4T 3V from 2018

CASING

1

CARTER COMPLETO

SP1A001088

Not Available

2

STUD SCREW

B014755

$1,27 Unit Price incl. VAT

3

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

4

REFERENCE DOWEL (D.9,5 H=15)

B015592

$0,27 Unit Price incl. VAT

5

PERNO AGGANCIO MOLLA CAVALLETTO

668686

$2,53 Unit Price incl. VAT

6

ALBERO PULEGGIA CONDOTTA (Z=15)

1A000895

Not Available

7

ANELLO TENUTA 20x32x7

B019107

$1,59 Unit Price incl. VAT

8

CUSCINETTO RADIALE RIGIDO A SFERE

83048R

Not Available

9

ANELLO DI TENUTA 40x25x7

B018139

$1,44 Unit Price incl. VAT

10

BUSSOLA

B017446

$0,72 Unit Price incl. VAT

11

CUSCINETTO RADIALE RIGIDO A SFERE

83046R

Not Available

12

REFERENCE DOWEL

B015591

$0,55 Unit Price incl. VAT

13

SILENTBLOC ATTACCO AMMORTIZZATORE

666991

$4,49 Unit Price incl. VAT

14

CUSCINETTO RADIALE RIGIDO A SFERE

83047R

$8,41 Unit Price incl. VAT

15

RACCORDO BLOW-BY

B015544

$0,72 Unit Price incl. VAT

16

Guarnizione fra semicarters motore

B019205

Not Available

17

VITE TEF M6X65

1A003068

$0,38 Unit Price incl. VAT

18

RONDELLA IN LEGA k3

485703

$0,16 Unit Price incl. VAT

19

VITE TCEI (M8x12)

269755

$0,34 Unit Price incl. VAT

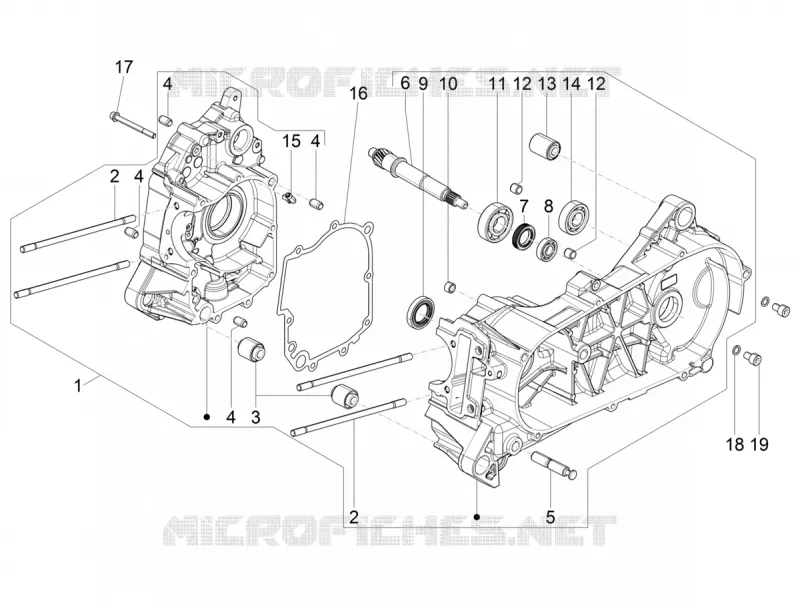

Find the detailed CASING GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
