1
Engine displacement
300
2
Model
GTS
3
Year
2019
4
Trim
GTS 300 Supertech HPE 4T/4V ie ABS Euro 4
5
Parts Catalog

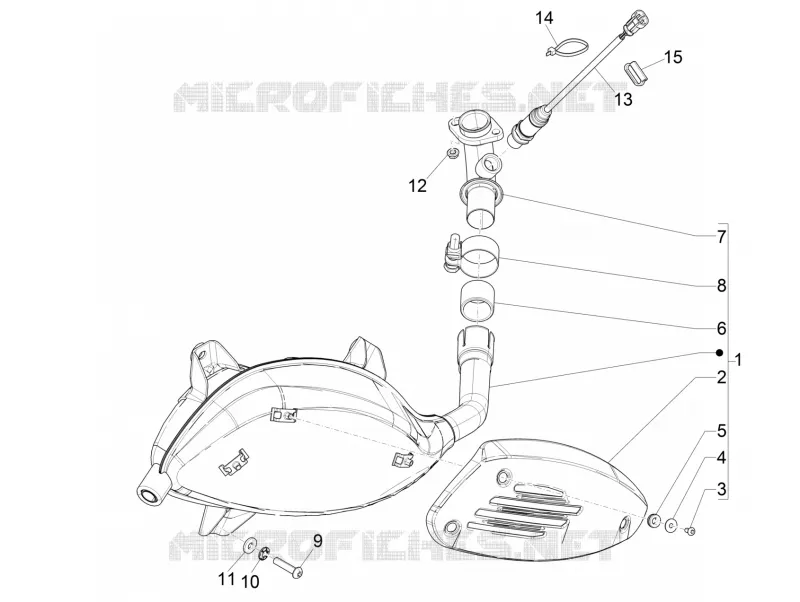

EXHAUST
6
Parts Diagram
Parts Catalog
Oil pump
by
Throttle body - Injector - Inlet manifold
EXHAUST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Pot d'échappement avec protection
1A0147505
$1 325,99 Unit Price incl. VAT
1
Pot d'échappement avec protection
1A0134745
$1 265,75 Unit Price incl. VAT
2
Protection
1A014749
$87,92 Unit Price incl. VAT
2
Protection
1A011990
$44,12 Unit Price incl. VAT
3
Hex socket screw M5x10
651014
$0,17 Unit Price incl. VAT
3
Vis M5x12
AP8152267
$0,34 Unit Price incl. VAT
4
Flat washer
827526
$0,25 Unit Price incl. VAT
4
Flat washer
844927
$0,50 Unit Price incl. VAT
5
Rubber spacer
841782
$0,84 Unit Price incl. VAT
6
Graphite bushing
8263885
$36,93 Unit Price incl. VAT
7
Exhaust manifold with I.P.
1A007653
Not Available
8
Hose clamp
8449404
$10,56 Unit Price incl. VAT
9
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
10
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
11
Flat washer 19,3x8,2x2,5
848452
$0,84 Unit Price incl. VAT
12
Nut
436947
$0,42 Unit Price incl. VAT
13
Lamda sensor l. 325 mm
584344
$93,68 Unit Price incl. VAT
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Lambda probe connector support
847974
$4,98 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
