Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
FLYWHEEL COVER - OIL FILTER

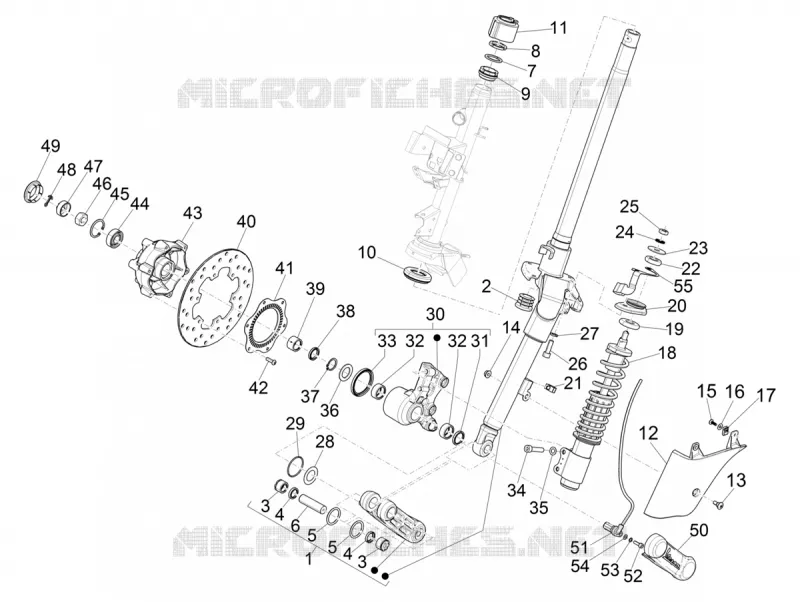

Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Steering tube complete with arm
1C0025285
$523,80 Unit Price incl. VAT
2
Cover
601026
$0,84 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Upper thrust ring
650693
Not Available
9
Steering security plate
582787
$3,65 Unit Price incl. VAT
10
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
11
Collar
582828
$4,82 Unit Price incl. VAT
12
Front suspension cover
1C001153
$24,90 Unit Price incl. VAT
13
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
14
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Washer
012528
$0,34 Unit Price incl. VAT
17
Spring plate
CM017410
$0,34 Unit Price incl. VAT
18
Amortisseur avant complet
1C003861R
$233,82 Unit Price incl. VAT
18
Complete front shock absorber
56452R
Not Available
18
Amortisseur avant complet
1C004497
Not Available
19
Pad
174874
$2,36 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
21
Elastic spring
231590
$0,25 Unit Price incl. VAT
22
Pad
174085
$1,18 Unit Price incl. VAT
23
Washer
174088
$0,84 Unit Price incl. VAT
24
Washer
012535
$0,08 Unit Price incl. VAT
25
Nut
021210
$0,16 Unit Price incl. VAT
26
screw
597150
$3,65 Unit Price incl. VAT
27
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
28
O-ring
177408
$0,08 Unit Price incl. VAT
29
Washer
177445
$0,34 Unit Price incl. VAT
30
Pin and shock absorber support
1C0025295
$79,16 Unit Price incl. VAT
31
Gasket ring
1C001969
$4,04 Unit Price incl. VAT
32
Drawn cap
177436
$9,18 Unit Price incl. VAT
33
Ring
177494
$1,85 Unit Price incl. VAT
34
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
35
Spring washer
709047
$0,08 Unit Price incl. VAT
36
Washer
177414
$0,75 Unit Price incl. VAT
37
Circlip
006422
$0,16 Unit Price incl. VAT
38
Gasket ring
177443
$1,77 Unit Price incl. VAT
39
Roller cage
177442
$4,04 Unit Price incl. VAT
40
Brake disc
56484R
$35,10 Unit Price incl. VAT
41
Roue phonique ABS avant
669115Z
Not Available
42
Screw
5A000656
$0,67 Unit Price incl. VAT
43
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
44
Bearing
177610
$8,41 Unit Price incl. VAT
45
Snap ring
006635
$0,25 Unit Price incl. VAT
46
Nut
021114
$0,51 Unit Price incl. VAT
47
Cap
177609
$2,19 Unit Price incl. VAT
48
Split pin
012789
$0,16 Unit Price incl. VAT
49
Cover
1C000523
$9,49 Unit Price incl. VAT
50
Front suspension arm cover
1C003863
$28,59 Unit Price incl. VAT
50
Front suspension arm cover
561433
Not Available
51
ABS sensor
1D0001275
Not Available
52
Torx Screw
880285
$3,65 Unit Price incl. VAT
53
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
54
Flat washer
669282
$1,43 Unit Price incl. VAT
55
Bride de support du tuyau de frein
1C001228
$12,30 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
