Engine displacement
150
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 150 4T ie ABS Euro 4
5
Parts Catalog
MAIN WIRING HARNESS
6
Parts Diagram
Parts Catalog
Stand/s
by
SWITCHES
MAIN WIRING HARNESS
1
1
1
2
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Groupe câbles
1D003076
$574,67 Unit Price incl. VAT
2
Fuse 40A
640394
$0,19 Unit Price incl. VAT
3
Cover
290404
$0,42 Unit Price incl. VAT
4
Mini fuse 5A
CM080904
$1,09 Unit Price incl. VAT
5
Mini fuse 7,5A
CM080905
$0,25 Unit Price incl. VAT
6
Mini fuse 10A
CM080906
$1,09 Unit Price incl. VAT
7
Mini-fusible 25A
CM080909
$0,65 Unit Price incl. VAT
8
Plugs spring
641599
$4,82 Unit Price incl. VAT
9
Plugs spring
1D000129
$1,42 Unit Price incl. VAT
10
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
11
Fuse 15A
290860
$5,73 Unit Price incl. VAT
12
Support câblage
1D001287
$1,15 Unit Price incl. VAT
13
screw
CM179202
$0,25 Unit Price incl. VAT
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Bouchon
1D002621
$2,36 Unit Price incl. VAT
16
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
17
Ambient temperature sensor
581142
Not Available
18
Earth braid
581309
$3,49 Unit Price incl. VAT
19
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
21
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
22
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
22
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
23
Plugs spring
641599
$4,82 Unit Price incl. VAT
24
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
25
Microrelay with resistance 12V 30A/10A
1D001636
$6,14 Unit Price incl. VAT
26
BRIDE DE DISPOSITIFS ÉLECTRIQUES
1B006816
$3,06 Unit Price incl. VAT
27
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
28
Spring plate M5
248419
$0,67 Unit Price incl. VAT
29
Molletta
B005629
$0,84 Unit Price incl. VAT
30
Spring for connector
639560
$0,67 Unit Price incl. VAT
31
Plugs spring
1D000129
$1,42 Unit Price incl. VAT
32
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT

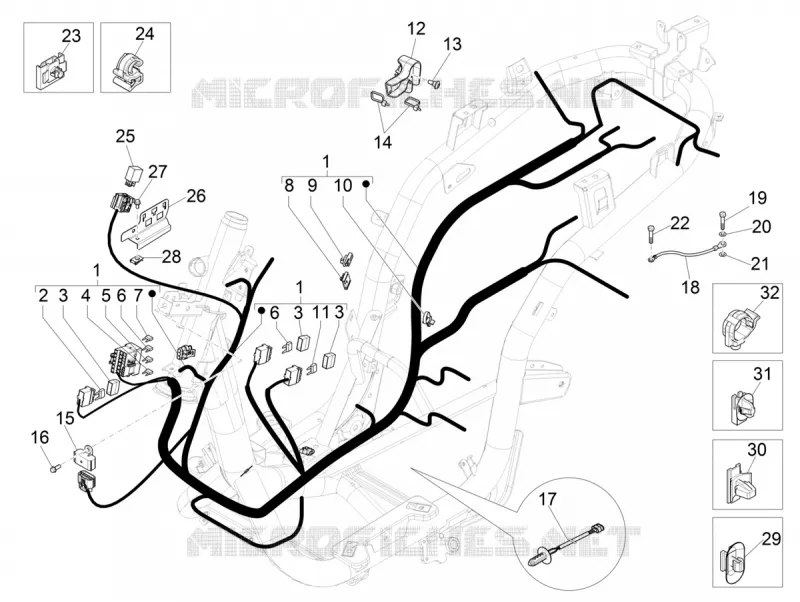

Find the detailed MAIN WIRING HARNESS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
