COOLING SYSTEM for SMT 50 Euro 4 Drifting from 2019

COOLING SYSTEM

1

Water cooler

2B0024585

Not Available

2

Rubber spacer

GU91551131

$5,38 Unit Price incl. VAT

3

Washer

297029

$3,70 Unit Price incl. VAT

4

Hex socket screw M6x10

AP8152175

$3,65 Unit Price incl. VAT

5

Hose clip D23,5x8*

AP8101927

$5,38 Unit Price incl. VAT

6

Water cooler-head tube

2B004425

$8,65 Unit Price incl. VAT

7

Hose clip D25x8,6

AP8101722

$3,65 Unit Price incl. VAT

8

Grommet

00008915020

$0,67 Unit Price incl. VAT

9

Radiator support bracket

2B004239

$4,93 Unit Price incl. VAT

10

Screw w/ flange M5x15

AP8152273

$0,16 Unit Price incl. VAT

11

Tank cap

00H03802472

Not Available

12

Expansion tank

00H03810501

$33,18 Unit Price incl. VAT

13

Spring plate M6

254485

$0,34 Unit Price incl. VAT

14

Threaded rivet

AP8201755

$5,73 Unit Price incl. VAT

15

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

16

Bush

AP8121032

$0,59 Unit Price incl. VAT

17

Screw w/ flange M6x20

AP8152279

$0,51 Unit Price incl. VAT

18

Hose clamp

00G03801701

Not Available

19

Radiator-pump pipe

2B004389

$58,65 Unit Price incl. VAT

20

pipe

862542

$11,69 Unit Price incl. VAT

21

8x3.5 pipe

862543

Not Available

22

Hose clamp 7,8-8,3

00H00400501

Not Available

23

"Y" union

862541

$6,74 Unit Price incl. VAT

24

pipe

862544

$33,05 Unit Price incl. VAT

25

Adhesive sponge 15x8

AP8117004

$5,38 Unit Price incl. VAT

26

White hose clip d.13x6

AP8102764

$1,86 Unit Price incl. VAT

27

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

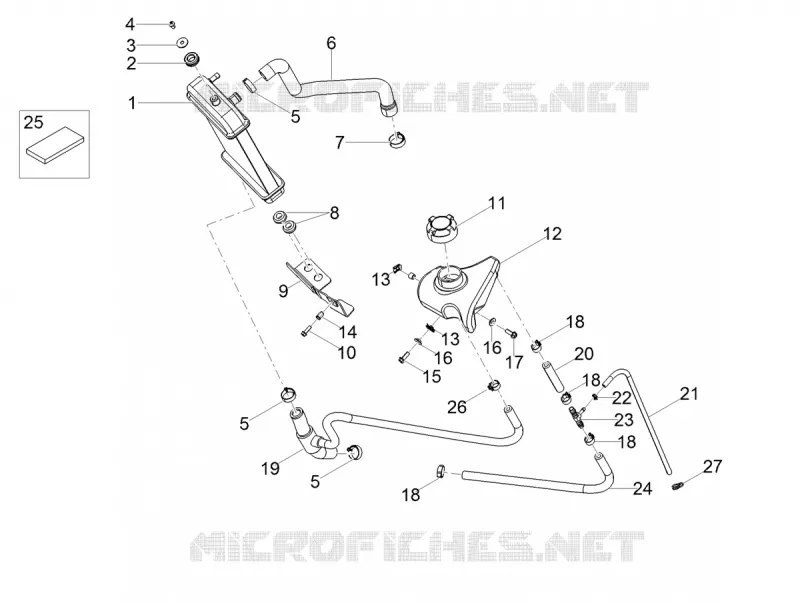

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
