by

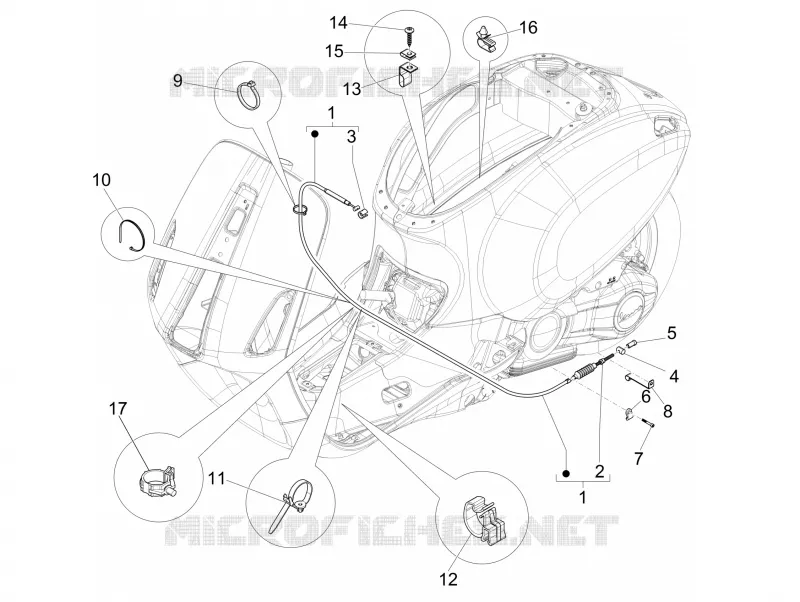

Transmissions
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Rear brake lever complete transmission
669209
$33,03 Unit Price incl. VAT
2
Registro freno posteriore
598918
$5,07 Unit Price incl. VAT
3
Bush
266040
$3,70 Unit Price incl. VAT
4
Adjuster pin
179640
$1,09 Unit Price incl. VAT
5
Registro freno posteriore
270310
$1,68 Unit Price incl. VAT
6
Plate
564497
$2,99 Unit Price incl. VAT
7
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
8
Hose clamp
844964
$0,25 Unit Price incl. VAT
9
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
10
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
11
Hose clamp
298729
$0,34 Unit Price incl. VAT
12
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
13
Hose clamp
648891
$2,95 Unit Price incl. VAT
14
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
15
Plate
CM017408
$0,25 Unit Price incl. VAT
16
Hose clamp
217280
Not Available
17
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
