1
Engine displacement
125
2
Model
SPRINT
3
Year
2017
4
Trim
Sprint 125 4T 3V IGET E4 ABS
5
Parts Catalog

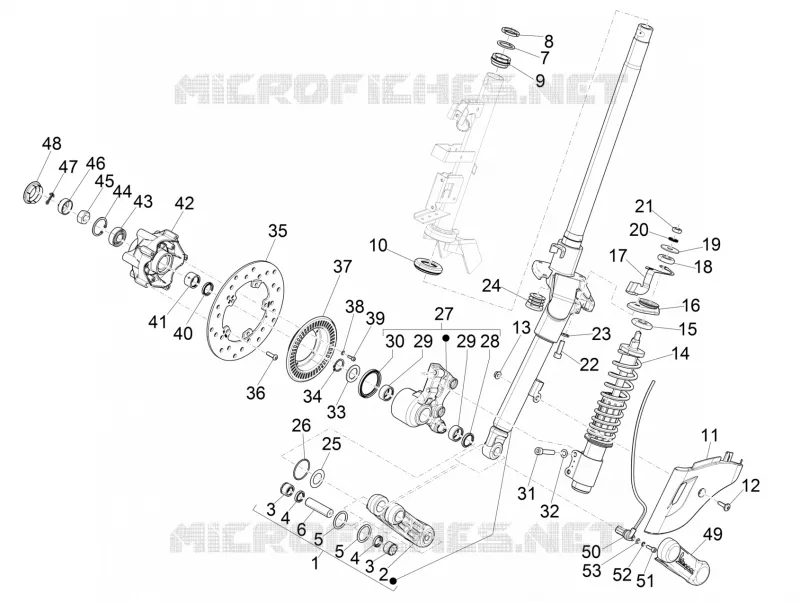

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers (ABS)
by
Transmissions
Fork/steering tube - Steering bearing unit
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
51
52
52
53
53
1
Arm complete steering tube
1C0003975
$294,03 Unit Price incl. VAT
2
Suspension arm with I.P.
6514825
$95,15 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
8
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
9
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
10
Lower steering bearing
650075
Not Available
11
Front suspension cover
1C001165
$5,38 Unit Price incl. VAT
12
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
13
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
14
Front shock absorber
1C002590R
$168,75 Unit Price incl. VAT
15
Pad
174874
$2,36 Unit Price incl. VAT
16
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
17
Brake pipe support bracket
1C000327
$13,53 Unit Price incl. VAT
18
Pad
174085
$1,18 Unit Price incl. VAT
19
Washer
174088
$0,84 Unit Price incl. VAT
20
Washer
012535
$0,08 Unit Price incl. VAT
21
Nut
021210
$0,16 Unit Price incl. VAT
22
screw
597150
$3,65 Unit Price incl. VAT
23
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
24
Cover
601026
$0,84 Unit Price incl. VAT
25
Washer
177445
$0,34 Unit Price incl. VAT
26
O-ring
177408
$0,08 Unit Price incl. VAT
27
Pin and shock absorber support
1C002340
Not Available
28
Gasket ring
1C001969
$4,04 Unit Price incl. VAT
29
Drawn cap
177436
$9,18 Unit Price incl. VAT
30
Ring
177494
$1,85 Unit Price incl. VAT
31
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
32
Spring washer
709047
$0,08 Unit Price incl. VAT
33
Washer
177414
$0,75 Unit Price incl. VAT
34
Circlip
006422
$0,16 Unit Price incl. VAT
35
Brake disc
1C000110
$68,85 Unit Price incl. VAT
36
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
37
Front ABS tone wheel
1C000095
$23,36 Unit Price incl. VAT
38
screw
292500
$2,95 Unit Price incl. VAT
39
Spring washer
006964
$0,67 Unit Price incl. VAT
40
Gasket ring
177443
$1,77 Unit Price incl. VAT
41
Roller cage
177442
$4,04 Unit Price incl. VAT
42
Front wheel hub
669149
Not Available
43
Bearing
177610
$8,41 Unit Price incl. VAT
44
Snap ring
006635
$0,25 Unit Price incl. VAT
45
Nut
021114
$0,51 Unit Price incl. VAT
46
Cap
177609
$2,19 Unit Price incl. VAT
47
Split pin
012789
$0,16 Unit Price incl. VAT
48
Cover
1C000523
$9,49 Unit Price incl. VAT
49
Front suspension arm cover
649113
$16,25 Unit Price incl. VAT
50
ABS front sensor
1D0009685
Not Available
51
screw
315092
Not Available
52
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
53
Flat washer
669282
$1,43 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
