Brakes pipes - Calipers (ABS) for GILERA PIAGGIO VESPA Sprint 125 4T 3V IGET E4 ABS from 2018

Cylinder-piston-wrist pin unit

Fork/steering tube - Steering bearing unit

Brakes pipes - Calipers (ABS)

1

Brake caliper Heng Tong

CM068301

Not Available

2

KIT PASTICCHE FRENO

647078

$35,62 Unit Price incl. VAT

3

PERNO

666139

$7,56 Unit Price incl. VAT

4

VITE TCEI M8X18

319532

$3,65 Unit Price incl. VAT

5

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

6

CENTRALINA ABS

1C002557

$827,55 Unit Price incl. VAT

7

STAFFA SUPPORTO CENTRALINA ABS CON PI

1C000431

$31,97 Unit Price incl. VAT

8

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

9

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

10

VITE A TESTA CILINDRICA M5X21

015856

$0,16 Unit Price incl. VAT

11

DISTANZIALE

1C000870

$0,92 Unit Price incl. VAT

12

TAMPONE DI=8 DE=12 H=1

939278

$0,34 Unit Price incl. VAT

13

RONDELLA ELASTICA CURVATA (D10 F5,3)

006965

$0,08 Unit Price incl. VAT

14

DADO ESAGONALE M6 CL.6S

020106

$0,08 Unit Price incl. VAT

15

RONDELLA ELASTICA ONDULATA 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

16

TUBAZ POMPA DX -UNITA' ABS

1C001022R

$42,39 Unit Price incl. VAT

17

RONDELLA

127927

$0,25 Unit Price incl. VAT

18

VITE ESP.TE M10X18

265451

$9,25 Unit Price incl. VAT

19

TUBAZ. FLES UNITA' ABS- PINZA ANT.

1C001023R

$43,81 Unit Price incl. VAT

19

Front clamp ABS unit pipe

1C002433

Not Available

20

RONDELLA

127927

$0,25 Unit Price incl. VAT

21

VITE ESP.TE M10X18

265451

$9,25 Unit Price incl. VAT

22

FASCETTA

1C000585

$2,95 Unit Price incl. VAT

23

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

24

VITE

274369

$0,17 Unit Price incl. VAT

25

FASCETTA CON MANICOTTO IN GOMMA

675510

$1,80 Unit Price incl. VAT

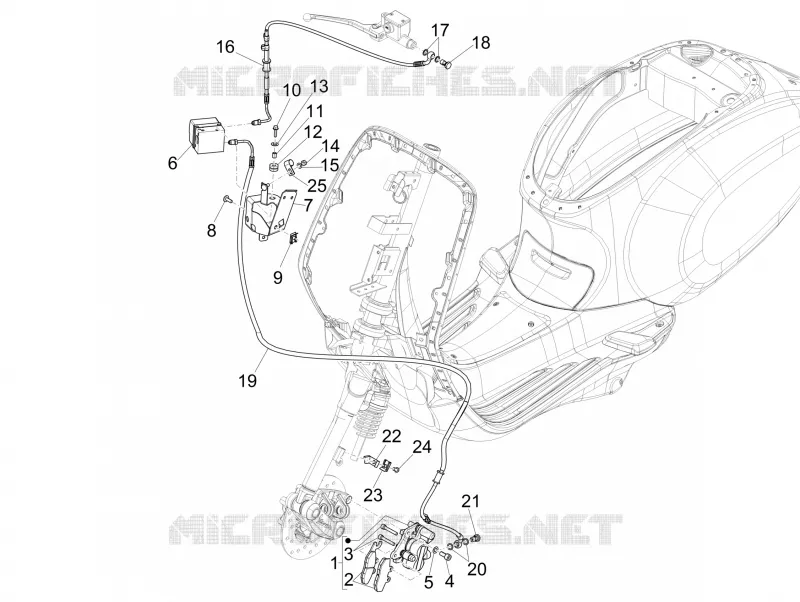

Find the detailed Brakes pipes - Calipers (ABS) GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
