Engine displacement
150
2
Model
946
3
Year
2016
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Engine, assembly
Head unit - Valve
1
2
3
4
5
5
6
7
8
9
9
10
10
11
12
13
14
15
15
16
17
1
Cylinder head assembly
1A002415
Not Available
1
Cylinder head assembly
1A005306R
Not Available
2
Big end-silencer gasket
434716
$1,35 Unit Price incl. VAT
3
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
4
Plug M6x10
842360
$0,75 Unit Price incl. VAT
5
Upper cap
B013833
$1,26 Unit Price incl. VAT
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Valve, in Ø 20
B019320
$8,24 Unit Price incl. VAT
8
Exaust valve Ø22
B013716
$26,82 Unit Price incl. VAT
9
Ext. valve spring
879456
$4,54 Unit Price incl. VAT
10
Half-cone
B015484
$0,92 Unit Price incl. VAT
11
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
12
Cup
843307
$2,77 Unit Price incl. VAT
13
Cylinder head gasket
1A000174
$3,28 Unit Price incl. VAT
14
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
15
Locating dowel
435571
$0,50 Unit Price incl. VAT
16
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
17
Screw w/ flange M6x110
B017150
$1,26 Unit Price incl. VAT

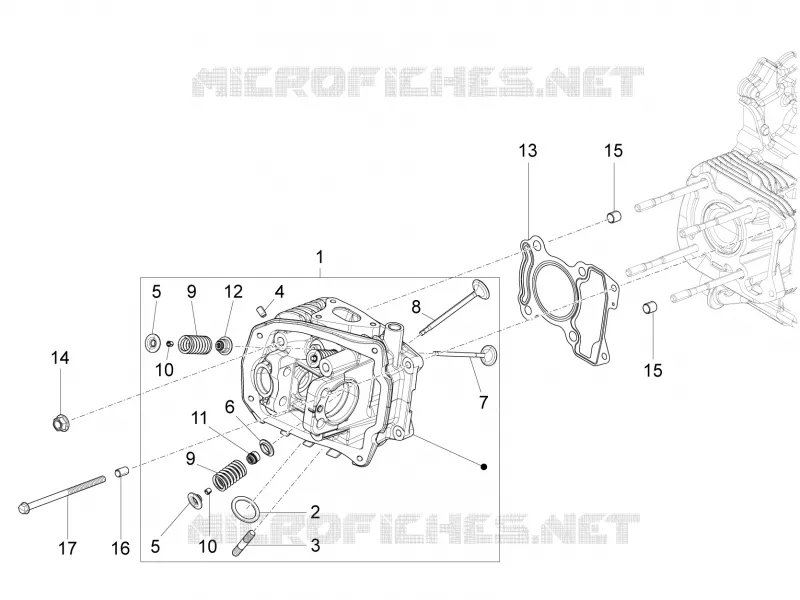

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
