Parts Catalog
Silencer
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Flywheel magneto
Silencer
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
1
Silencer complete with protection
1A0061665
Not Available
1
Silencer complete with protection
1A0048725
$897,99 Unit Price incl. VAT
1
Silencer complete with protection
1A0056285
Not Available
2
Protection
1A0048735
$202,43 Unit Price incl. VAT
3
screw M5x10
842908
Not Available
4
Flat washer
844927
$0,50 Unit Price incl. VAT
5
Rubber spacer
841782
$0,84 Unit Price incl. VAT
6
Protection
B018287
$38,27 Unit Price incl. VAT
7
screw M5x10
842908
Not Available
8
Flat washer
1A000244
$2,95 Unit Price incl. VAT
9
Spacer
876879
$5,89 Unit Price incl. VAT
10
Shim washer
287073
$0,17 Unit Price incl. VAT
11
Washer
709012
$0,76 Unit Price incl. VAT
12
Hex socket screw M8x55
872997
$0,84 Unit Price incl. VAT
13
Nut
436947
$0,42 Unit Price incl. VAT
14
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
15
Strap
643451
$3,65 Unit Price incl. VAT
16
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
17
Lamda sensor
1D0003745
Not Available

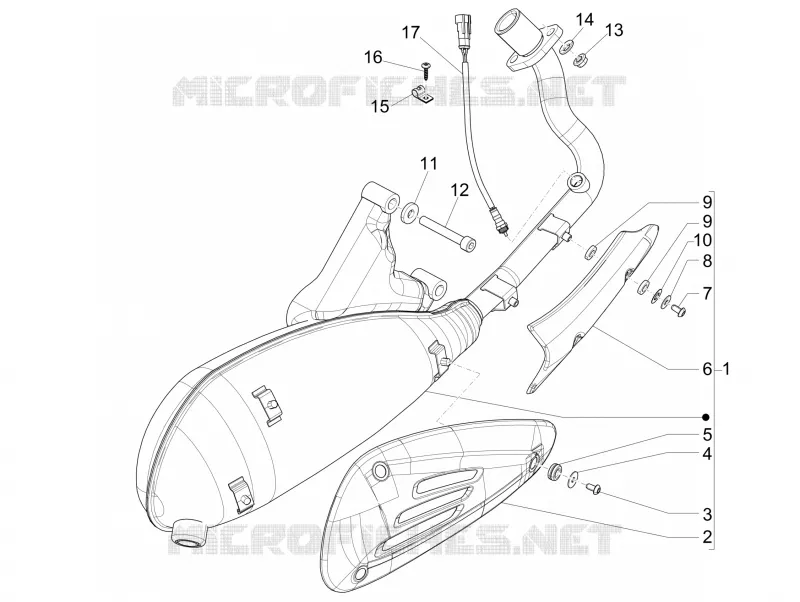

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
