1
Engine displacement
125
2
Model
946
3
Year
2017
4
Trim
946 RED 125 4T 3V ABS E4
5
Parts Catalog

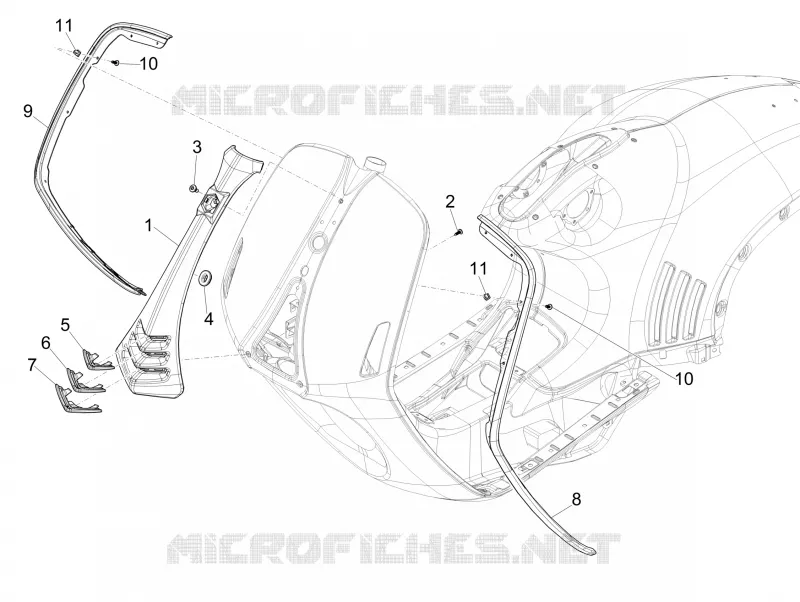

Front shield
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Rear headlamps - Turn signal lamps
Front shield
1
2
3
4
5
6
7
8
9
10
10
11
11
1
Painted steering cover
67615400DT
$120,81 Unit Price incl. VAT
1
Painted steering cover
67615400R7
$120,81 Unit Price incl. VAT
1
Painted steering cover
6761540090
$120,81 Unit Price incl. VAT
1
Painted steering cover
67615400BR
$120,81 Unit Price incl. VAT
1
Steering column cover
676154
$16,64 Unit Price incl. VAT
1
Painted steering cover
67615400HF
$120,81 Unit Price incl. VAT
2
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
2
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
3
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
3
screw
CM179202
$0,25 Unit Price incl. VAT
4
Elastic drift
463195
Not Available
4
Pad
1B000888
$0,25 Unit Price incl. VAT
5
Upper emblem
676061
Not Available
6
Central emblem
676062
$27,50 Unit Price incl. VAT
7
Lower emblem
676063
Not Available
8
Shield frame SX
675172
Not Available
9
Shield frame DX
675173
$219,34 Unit Price incl. VAT
10
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
11
Expansion plug
199190
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
