1
Engine displacement
150
2
Model
PX
3
Year
0
4
Trim
PX 150 E
5
Parts Catalog
Crankshaft-con-rod-crank pin, assy
6
Parts Diagram
Parts Catalog
Front brake-gear transmiss.
by
Clutch-throttle transmissions

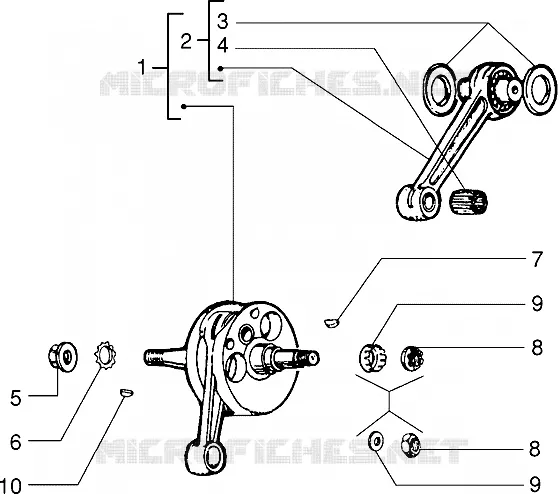

Crankshaft-con-rod-crank pin, assy
1
2
3
4
5
6
7
8
8
9
9
10
1
Drive shaft
1331545
$224,10 Unit Price incl. VAT
2
Con-rod assy.
241205
Not Available
3
Washer
0586524
$3,65 Unit Price incl. VAT
4
Roller cage
500542
$7,70 Unit Price incl. VAT
4
Roller cage
500541
$7,70 Unit Price incl. VAT
4
Roller cage
500543
$10,67 Unit Price incl. VAT
4
Roller cage
500544
$7,70 Unit Price incl. VAT
5
Nut
021112
$3,65 Unit Price incl. VAT
6
Washer
012555
$2,95 Unit Price incl. VAT
7
Transmission key
000097
$5,21 Unit Price incl. VAT
8
Nut 12x1.5
487724
$3,65 Unit Price incl. VAT
8
Ring nut
020375
Not Available
9
Washer
006982
$1,54 Unit Price incl. VAT
9
Ring
022313
Not Available
10
Transmission key
000267
$1,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
